Merge Projects

The Merge feature is enabled only if there are at least two projects.

Open the Projects page by tapping All Projects from the Menu panel.

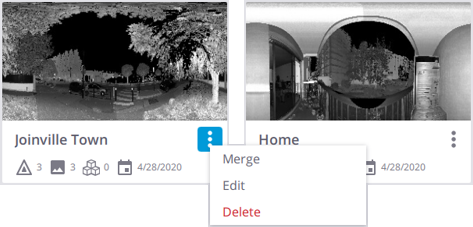

Select a project (A) by tapping More and Merge. Select a project (B) (or more) to merge with the selected project (A) and tap Merge again. The following is imported into the selected project (A):

  • SCANS: Scans and attributes (name, captured and processed images, labels, and colorization). Define the start index. If the defined value is:

    • Less than (or equal to) the last station of project A, the start index of project B will be the last station with an increment of project A.

    • Greater than the last station of project A, this value will be used as the start index of project B.

  • REGISTRATION SETS: Registration sets are renamed to follow the registration set(s) (if existed) of the current project.
  • ANNOTATIONS & PRECISION POINTS: Annotations or precision points with attributes (position, name, description, and attached image). In case of conflict, annotations or precision points are renamed following the following pattern "Annotation_Name (n) and "n" the number of annotations or precision points with the same name.
  • PROJECT FILES: TZF, and/or TCF (X7/X9), and/or TOI (X12) and/or TPF only to the database.

The following will not be imported into the selected project:

  • PROJECT ATTRIBUTES: Project's name, illustration image, and description.
  • PROJECT COORDINATES FRAME: Scans are imported into the current project coordinates frame.
  • NOTIFICATIONS : Notification history is not imported.



  • You cannot merge two empty projects together.

  • Perspective checks if there is enough space on the disk. If not, a warning pops up and the merging is canceled.

The Merge and Import features are similar. Scans are labeled as "Merged" in case of merging projects or "Imported" when importing a project.
