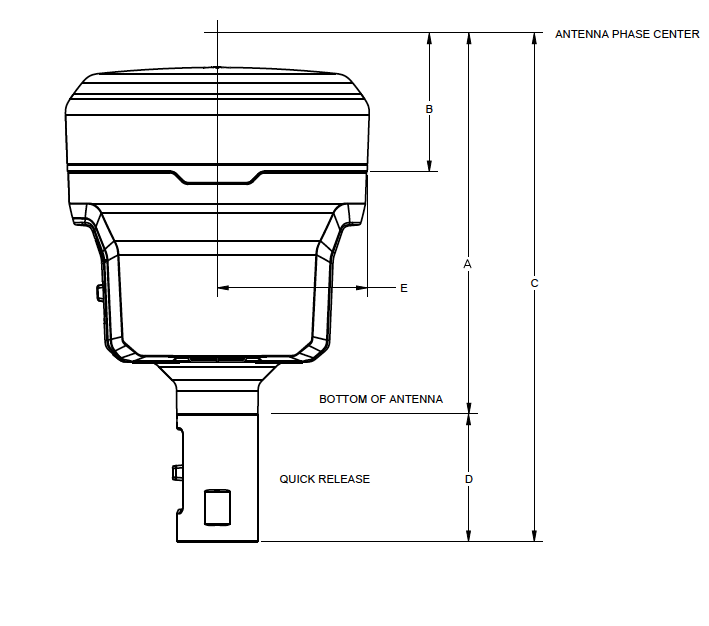

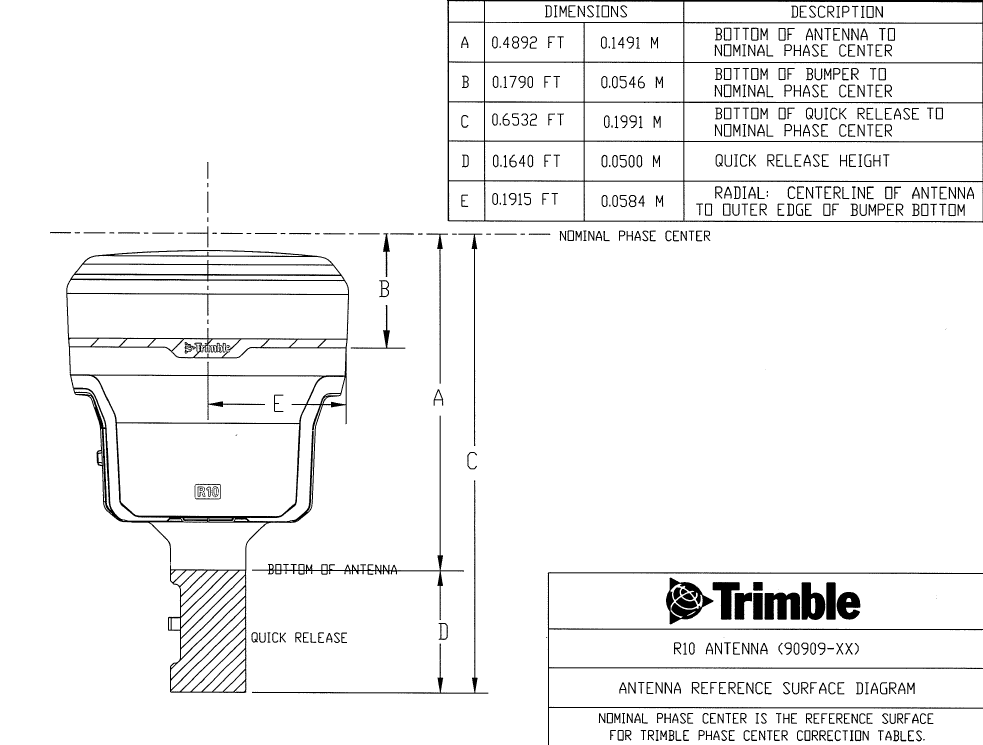

Antenna phase center offsets
Dimensions | Description | ||
A | 0.4892 FT | 0.1491 M | Bottom of Antenna to Nominal Phase Center |
B | 0.1790 FT | 0.0546 M | Bottom of Bumper to Nominal Phase Center |
C | 0.6532 FT | 0.1991 M | Bottom of Quick Release to Nominal Phase Center |
D | 0.1640 FT | 0.0500 M | Quick Release Height |
E | 0.1915 FT | 0.0584 M | Radial: Centerline of Antenna to Bottom Outer Edge of Bumper |
