What's new in version 6.28/5.68 (January 2025)

We recommend that you carefully review this information for any possible impacts to workflows and take appropriate action to avoid disruptions.

CAUTION – All data files in the receiver are deleted when you install new firmware. Before you start, ensure that you first download any data files from your receiver to your computer.

For information about software compatibility, see Supported software.

Main changes and improvements

Galileo HAS. (R10-2 only) Galileo HAS (High Accuracy Service) support added for Trimble ProPoint® technology. To enable HAS support, the receiver options must be updated using Trimble Installation Manager (TIM). The Galileo High Accuracy Service (HAS) is available through the Galileo signal (E6). To configure it, go to Tracking.

NOTE – Galileo HAS is supported from firmware version 6.28. Galileo HAS has reached service level 1, which means “reduced coverage and performance with respect to the Full Service”. For example, the phase biases are still missing in the correction stream. Currently, Trimble cannot guarantee the convergence time specification at least until phase biases are provided. For more information, refer to https://www.gsc-europa.eu/galileo/services/galileo-high-accuracy-service-has.

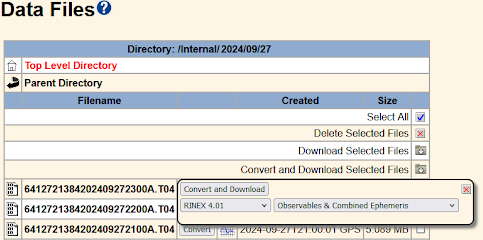

RINEX 4.01. Added new GPS L1 and L2 observation Code for RMP antenna (code names are now reserved) and added the new NavIC L1 observation code. See Data Files.

Tectonic plate transformation. (R10-2 only) Updated the receiver web interface to reflect tectonic plate transformation occurring for RTX, CLAS and HAS. To configure RTX, see MSS Configuration. To configure QZSS CLAS (on QZSS L6D signal) and Galileo HAS (on Galileo E6 signal), see Tracking.

USB connection. Fixed issues with the USB connection.
