Trimble R580 Help

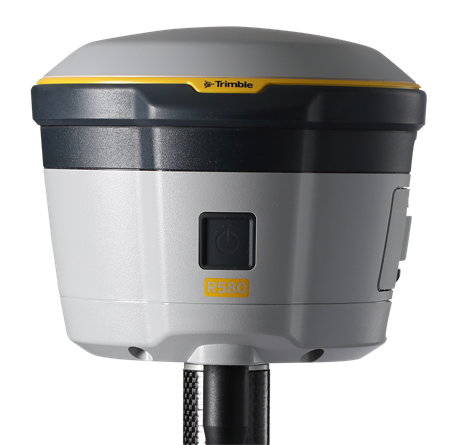

The R580 receiver incorporates a GNSS antenna, receiver, Bluetooth® wireless technology, Wi-Fi, an optional internal 450 MHz radio with a receive option which can be used as a rover, and a battery in a rugged light-weight unit. The LED enables you to monitor radio reception and power. Bluetooth wireless technology provides cable-free communications between the receiver and the controller.

The R580 receiver does not have a front panel to change settings. To configure the receiver, see Configuring and using the receiver.

• Parts of the R580 receiver

• Setting up the receiver
