Receiver dimensions

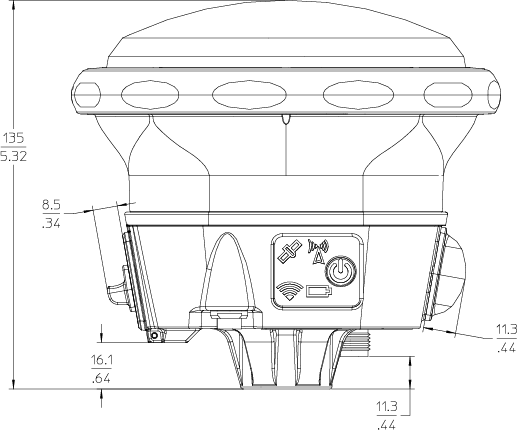

This drawing show the dimensions of the R780 / R780-2 receiver. It also provides the location and type of connectors used.

The larger dimensions shown in these drawings are millimeters. The smaller dimensions are inches.

❶

Radome locking ring and bumper

❷

GNSS antenna radome

❸

Wi-Fi and Bluetooth antenna radome

❶

Latch operation

❷

Battery door

❶	Lemo connector, USB and external power port	❸	TNC type antenna connector
❷	5/8-11 threaded mount	❹	Pressure test port

84690-00 Quick Release
