Lemo connector

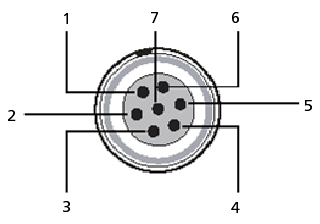

This is a 7-pin 0-shell Lemo connector.
|
Pin |
Usage |
|---|---|
|
1 |
RS-232 signal GND |
|
2 |
GND |
|
3 |
RS-232 serial data out |
|
4 |
CAN- |
|
5 |
CAN+ |
|
6 |
DC power In |
|
7 |
RS-232 serial data in |
