Cables

The receiver has a wide range of interfacing options. There are a number of adapters and cables available from Trimble that provide most of the common interfacing combinations.

The following cables are available for purchase. For more information, please contact your Trimble dealer.

1.5 m, 0S/7P/M-DB9/F, Dat (TM3/4700/4800/5700)

P/N 59046

1.6 m 7P USB to locking USB-C

P/N 123723-00

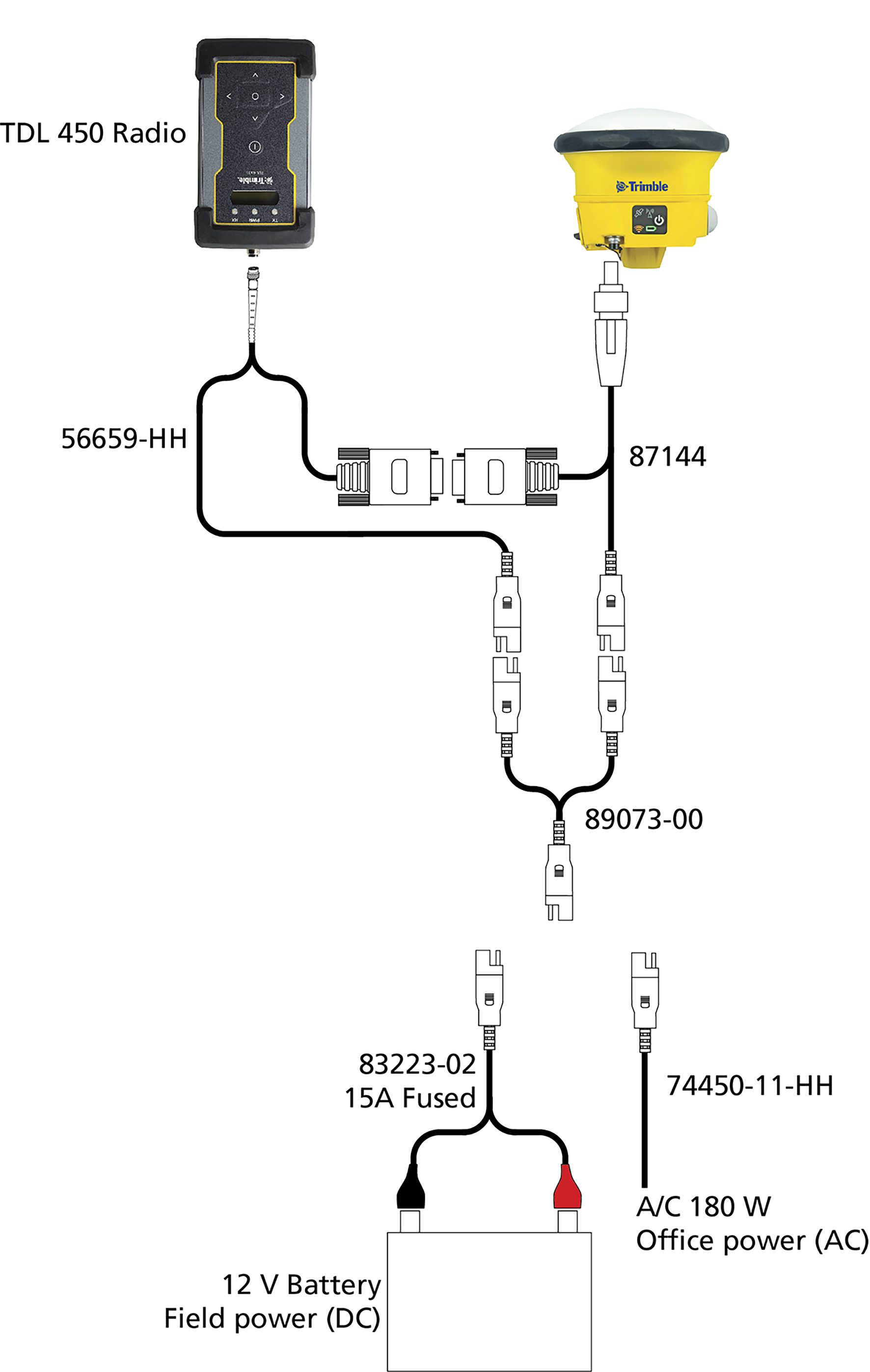

7P Lemo to DB-9 male RS-232 and power SAE

P/N 87144

This cable is a RS-232 serial cable used to output base corrections from the receiver to a high-powered base station. It directly interfaces the R980receiver outputs to a high-powered transmit radio or to third-party radios. It powers the receiver from a DC power source. It is also used to output NMEA messages to legacy computer applications.

Data/Power, 1.5 m, DB9(F) to 0S/7P/M to SAE (Survey)

P/N 59044-10

External battery cable set (7P Lemo to SAE, 0.6 m / SAE to battery clips, 1.8 m)

P/N 89864-00

NMO to SMA-R/P radio antenna, 5 m (for 450 MHz) RG58

P/N 130626-05

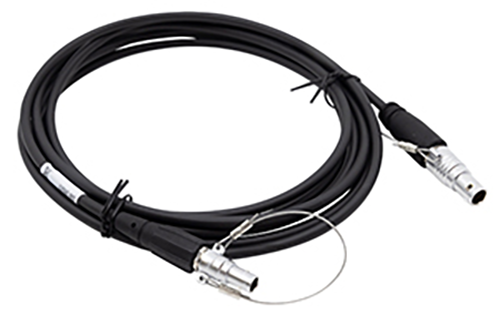

Receiver RS-232 7P to TDL RS-232 5P

P/N 130918

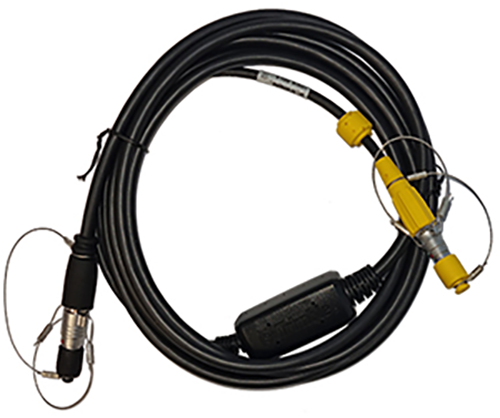

Receiver USB 7P to RS-232 TDL 5P

P/N 130916

Serial field data cable (7P Lemo to DB9)

P/N 89851-00

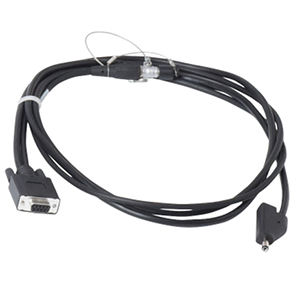

Serial office data and power Y-cable (7P Lemo to DB9 and power)

P/N 89853-00

TDL 450 / HPB450 (0S/1S Lemo; SAE Power)

P/N 66656-10

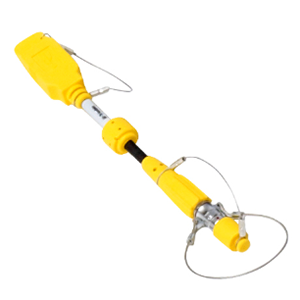

USB field data cable (7P Lemo to USB-A female)

P/N 89850-00

USB office data and power Y-cable (7P Lemo to USB-A male and power)

P/N 89852-00
