Pinout information

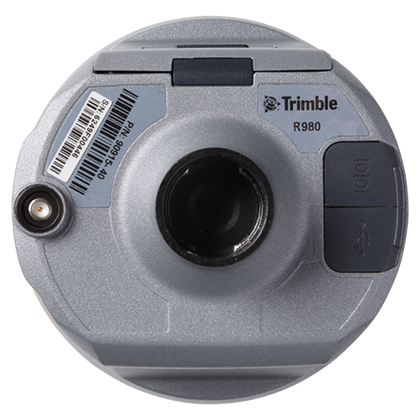

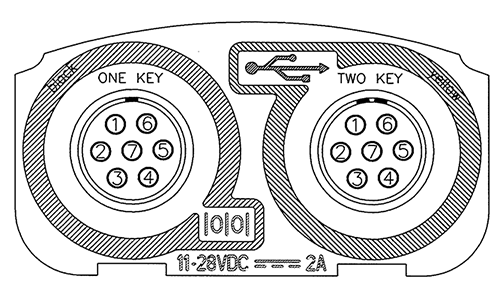

Port 1 is a 7-pin 0-shell Lemo connector that supports RS-232 communications and external power input. Port 1 has no power outputs.
Port 2 is a 7-pin 0-shell Lemo connector that allows for USB 2.0 communications and external power input.
|
|
|
||
|---|---|---|---|
|
Pin |
Function |
Pin |
Function |
|
1 |
Ground (-) |
1 |
Ground (-) |
|
2 |
Ground (-) |
2 |
Ground (-) |
|
3 |
Tx data (output) |
3 |
VBUS |
|
4 |
RTS (output) |
4 |
D- |
|
5 |
CTS (input) |
5 |
D+ |
|
6 |
Power (+) |
6 |
Power (+) |
|
7 |
Rx data (input) |
7 |
ID |
