Radio antenna extension kit

For extended radio range it is possible to fit an antenna extension kit part number 58313001) to get the radio antenna to a higher position on the rod where it is clear from obstruction by the user or the rod itself. When working at the maximum radio range, this can make a significant difference.

The antenna extension kit consists of:

Item	Description
a	Antenna holder
b	Antenna cable
c	Washer
d	Locking washer
e	Nut

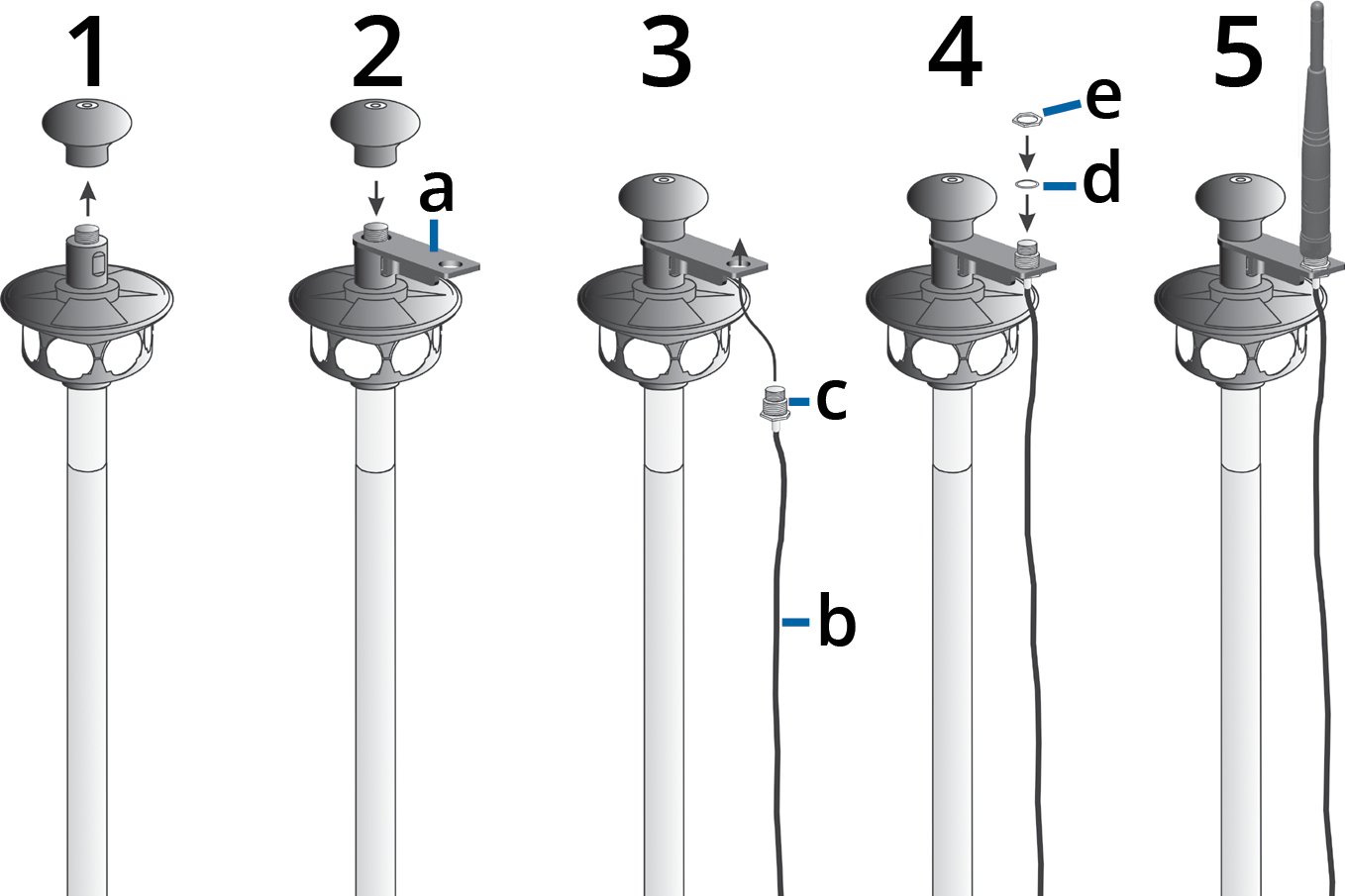

1. Unscrew and remove the top part of the 360° prism.

2. Fit the antenna holder (a) over the thread and re-fit the top part of the 360° prism.

3. Fit the washer (c) on the antenna cable (b) and fit the antenna cable (b), from underneath, to the antenna holder.

4. Fit the locking washer (d) and nut (e).

5. Fit the antenna on top and connect the antenna cable to the antenna connector on the Trimble Robotic Holder.
