eBubble operation

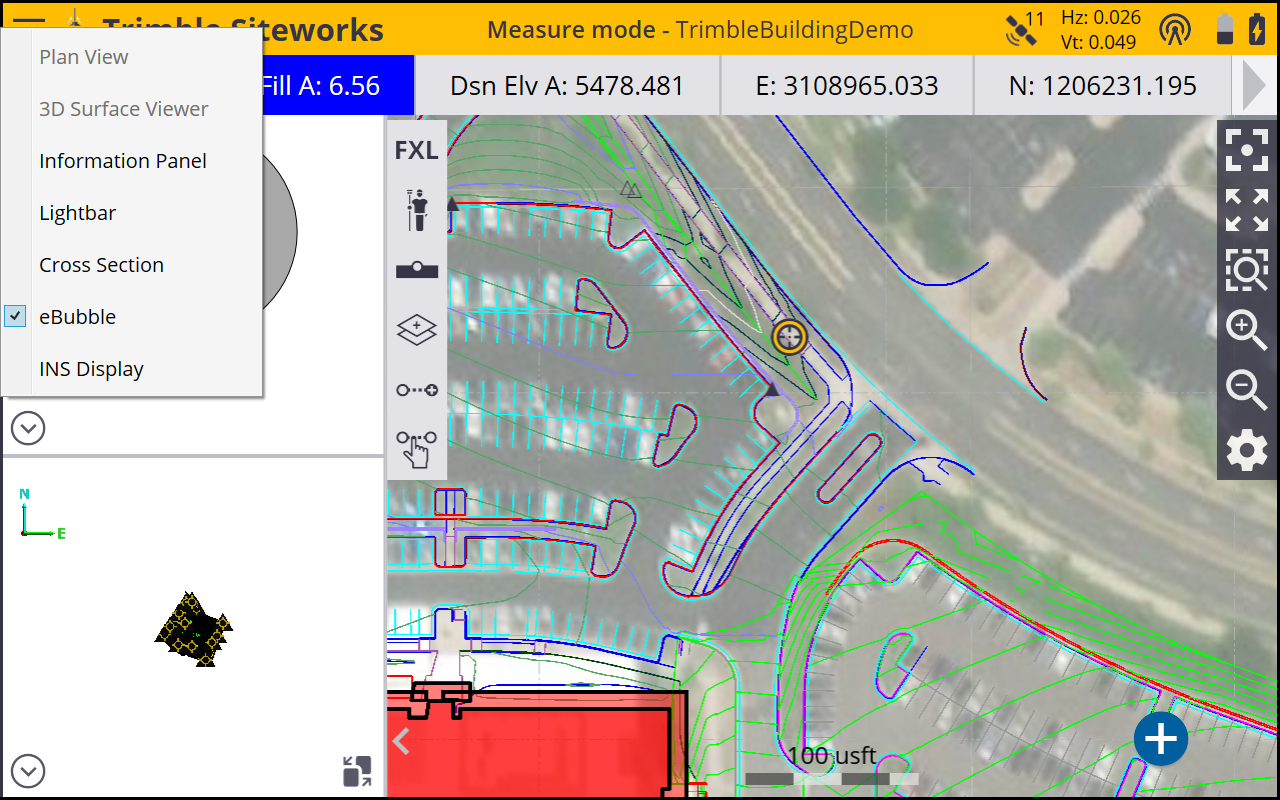

The eBubble is displayed in the top or bottom side panel. It is turned on by tapping on the down arrow and selecting .

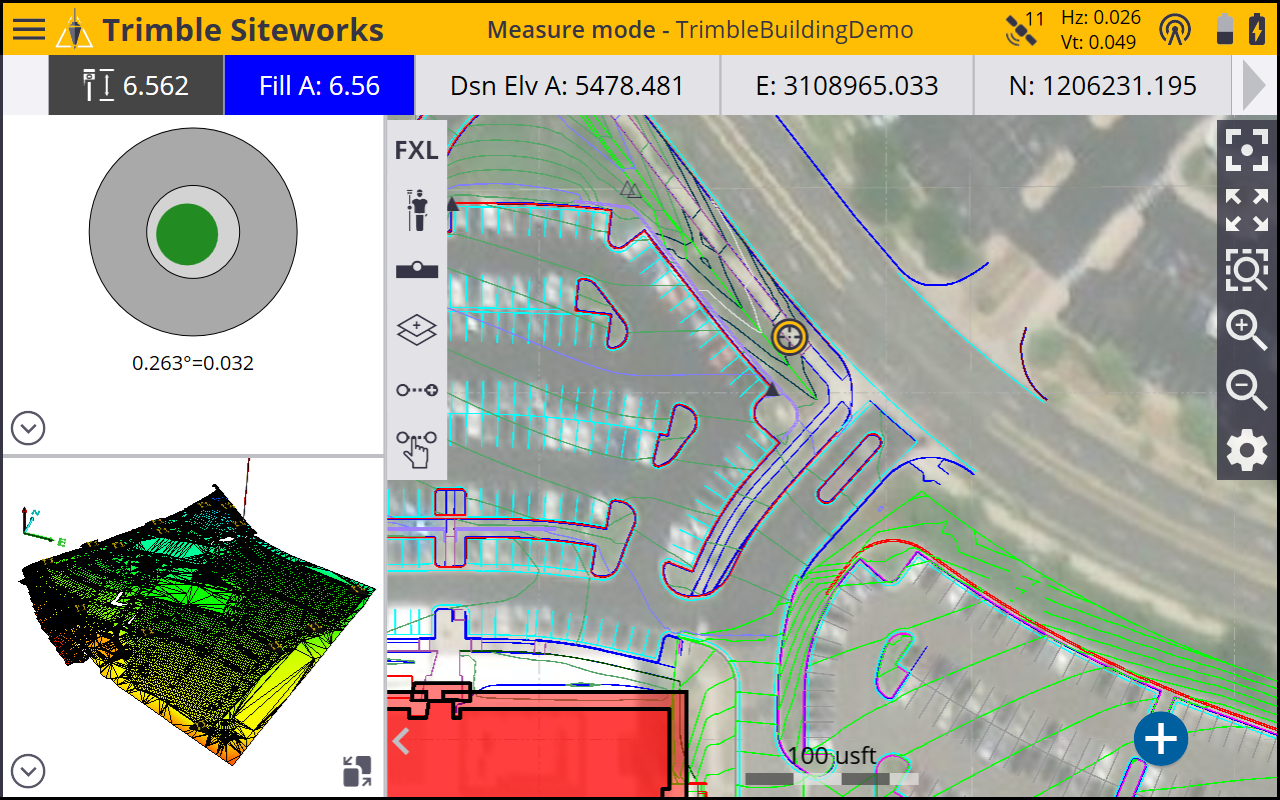

The eBubble is automatically available whenever a compatible receiver is connected to the Siteworks software. It shows the degrees of tilt in the lower left, and the tilt distance in site units (meters, international feet, US survey feet) in the lower right, calculated based on the current rod height. The bubble turns red when the tilt distance exceeds the tilt tolerance value input in the eBubble Settings screen. The eBubble can only be displayed in the side panels and not the main working panel.

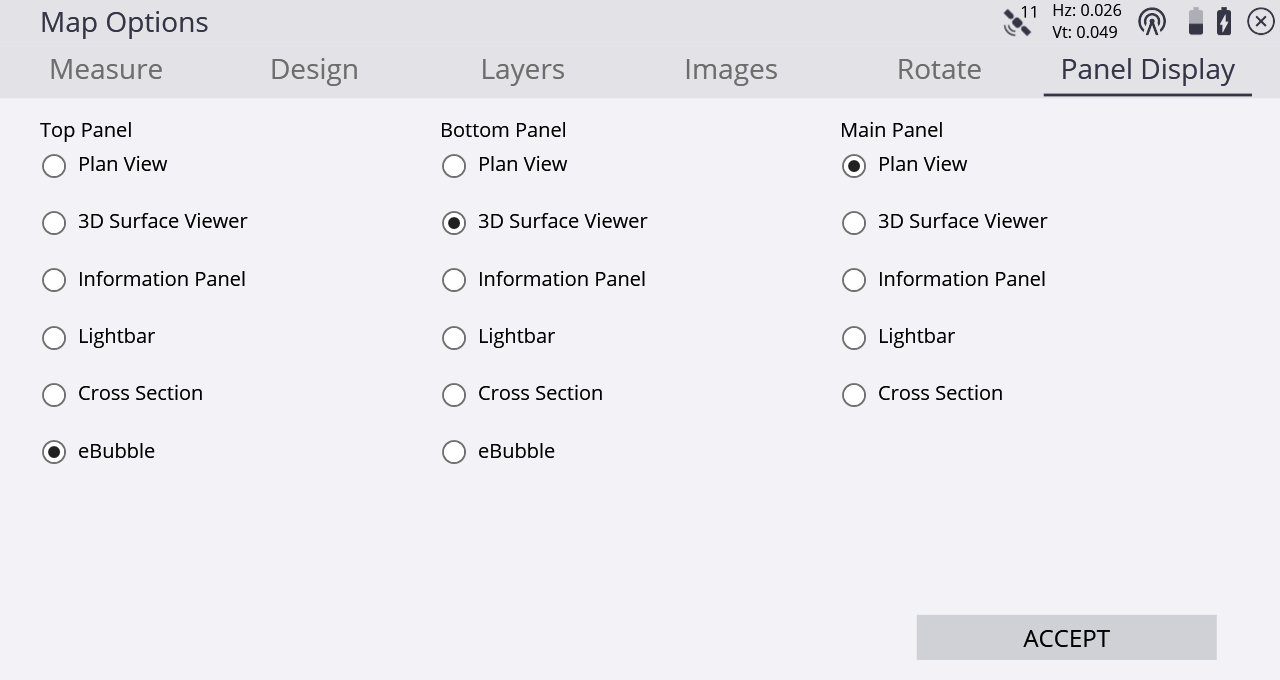

The eBubble can also be turned on or off by going to the map display options (select the Settings icon ) and choosing eBubble under the Panel Display tab of the Map Options screen. Select the check box to display the eBubble.

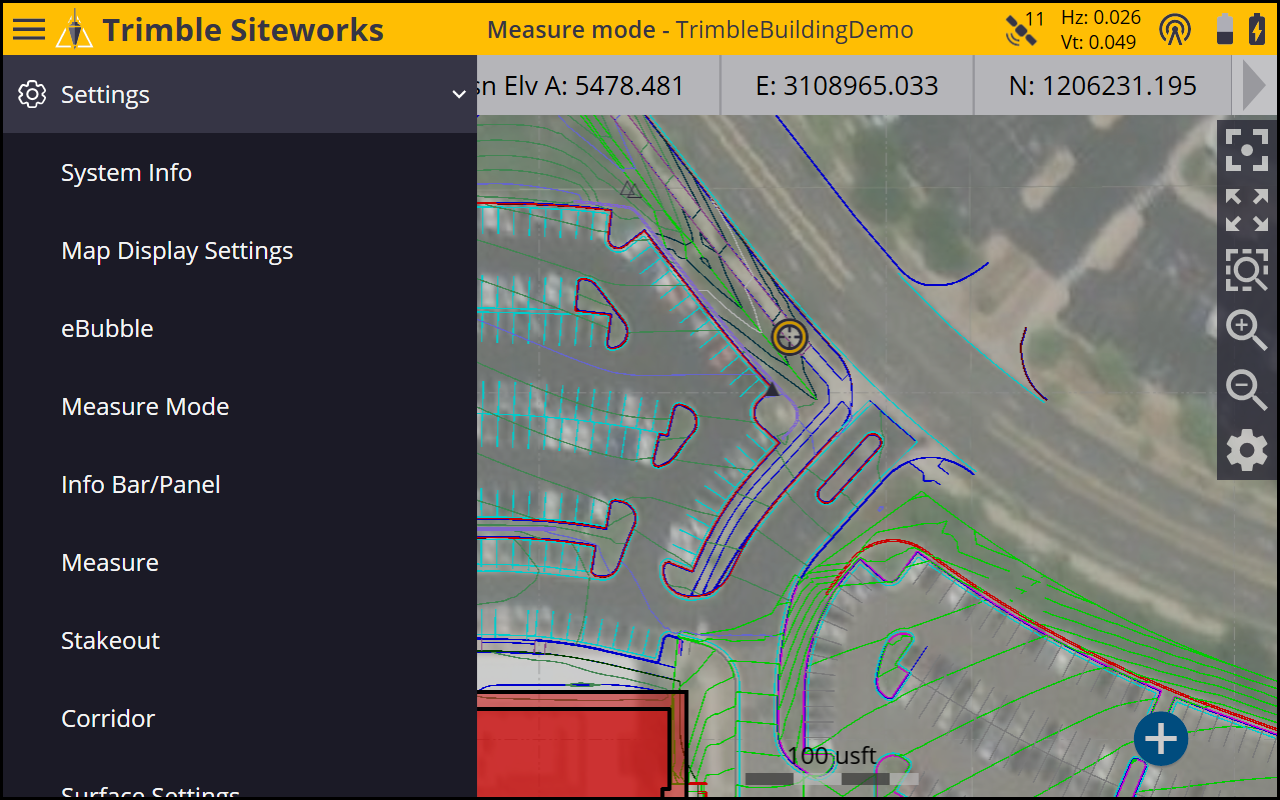

To access the eBubble settings, from the Home menu, select Settings / eBubble or tap in the eBubble side panel.
