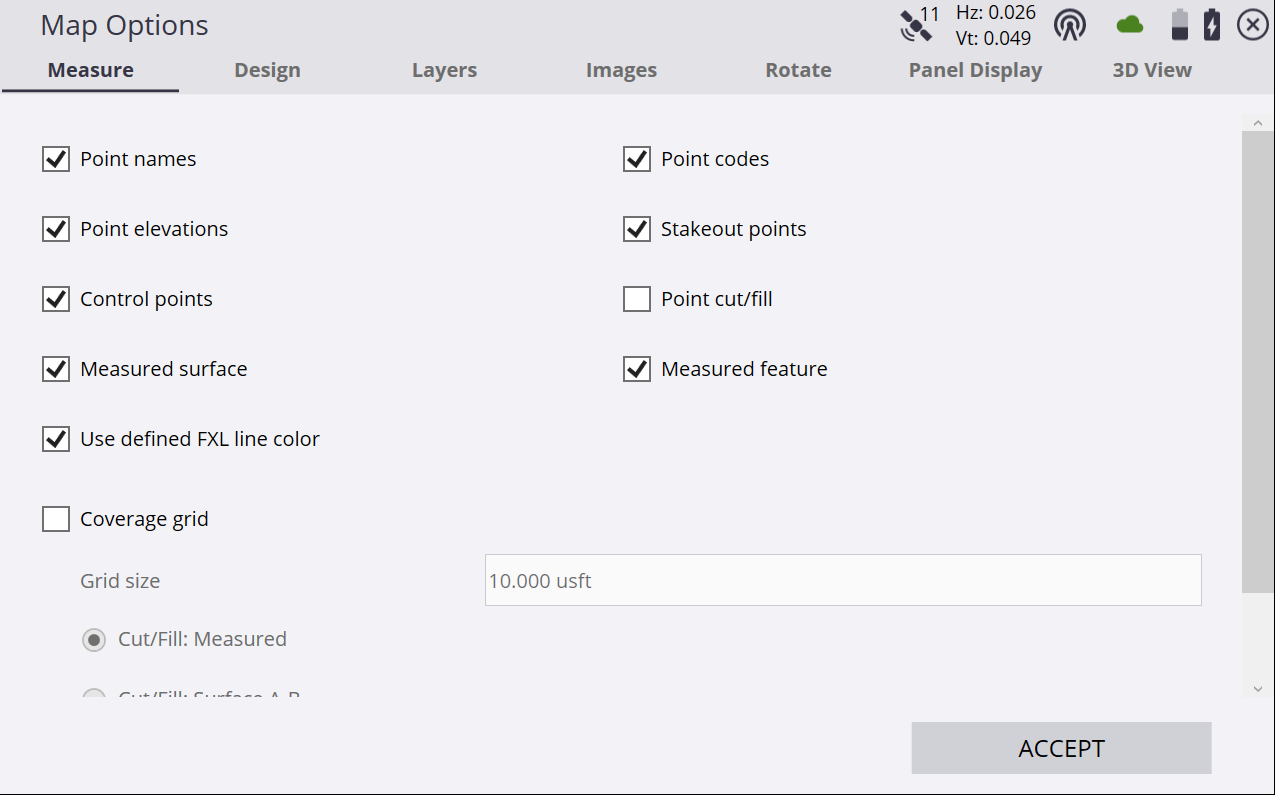

Map Options: Measure tab

Use the Measure tab to filter the different measured data that is being displayed. This is the default tab that is selected every time the Map Options icon is tapped:

Select this option…	to display…
Point names	the point names of every point on the map view.
Point elevations	the point elevations of every point on the map view.
Control points	control points on the map view.
Measured surface	measurements that were recorded as a surface.
Use defined FXL color	display FXL measured lines in the color associated with the FXL code. Introduced v1.75.
Coverage grid	a coverage grid map that shows cut/fill/in tolerance values as shades of red/blue/green respectively between a measured point and the selected design surface, between two design surfaces, or elevation changes as different shades of blue depending on the setting of the radio button. The Coverage grid function has three options: Cut/Fill: Measured – This setting displays a coverage grid based on the current measurement within a grid point relative to the design surface selected in the Open Project screen as different shades of red, blue or green. If there are multiple measured points within a grid cell, the largest cut/fill value is used in the color display. Cut/Fill: Surface A-B – This setting displays a static coverage grid map of cut/fill between two design surfaces. Surface A is the primary design surface set in the Open Project screen. Surface B is the secondary surface set through the Home / Settings / Second Surface. This display is static and does not update based on any new measurements. It can only be displayed between two existing designs saved in the project. Elevation – This setting displays the relative elevation of grid cell points as shades of blue. Lighter shades of blue are lower in elevation than darker shades. The color scale gradations are distributed evenly across the difference between the maximum and minimum measured elevations. The colors automatically update if a new elevation value is measured. Grid Size – Using this setting the size of the coverage grid can be changed and set to a scale to meet the needs on site.
Point codes	the point codes of every point on the map view.
Point cut/fill	the cut/fill information for every point on the map view.
Stakeout points	stakeout points on the map view.
Measured feature	measurements that were recorded as a site feature.
