Map Options: Rotate tab

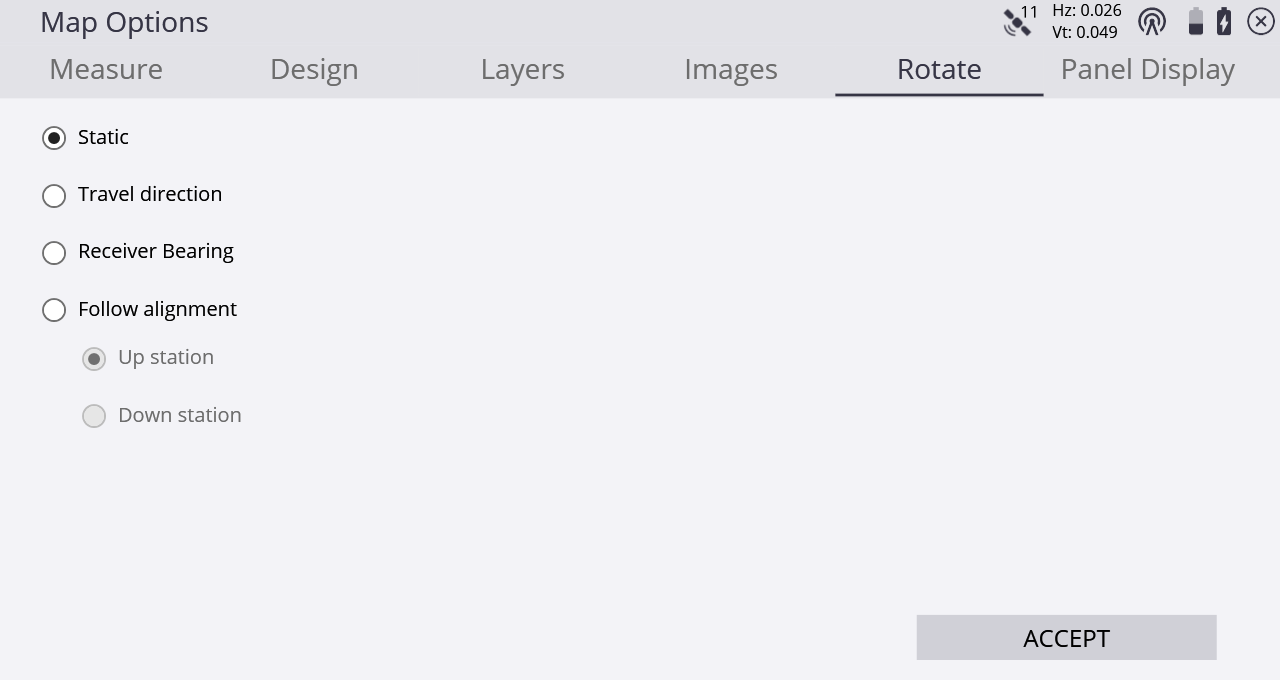

Use the Rotate tab to control the map rotation of the Measurement screen:

Select this option…	to orientate…
Static	the map view to the Project's North.
Travel direction	the map view to your direction of travel/walking/driving.
Receiver Bearing	the map view to the direction your GNSS receiver is facing. This option requires Tilt Compensation to be enabled.
Follow alignment	(This option is only available when an alignment is selected.)
Up station	the screen up station.
Down station	the screen down station.

When any option other than Static is selected, a North arrow automatically appears on the screen.
