Reading station setup data from the total station

After you have performed a station establishment, the total station stores the information in its memory so that other controllers running the software can access it. Subsequent users can save time by simply retrieving the station setup information from the total station’s memory without resetting up at an arbitrary location or on a known control point.

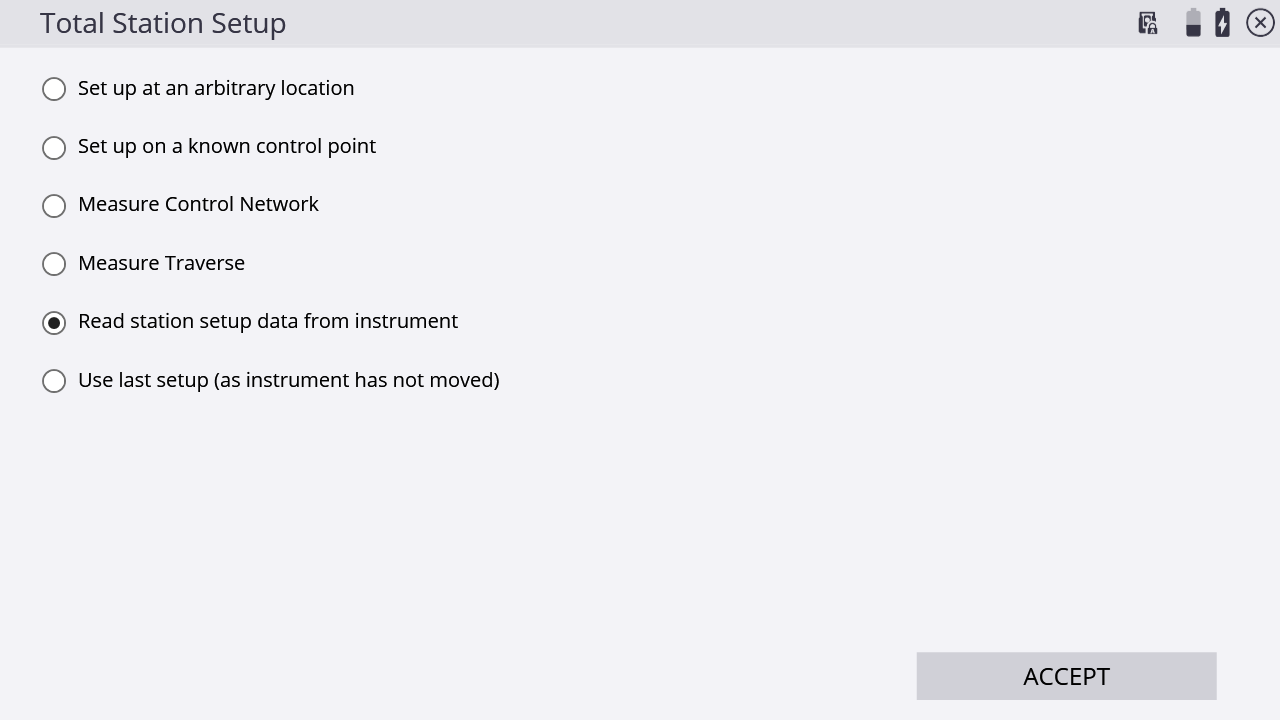

Only one controller can connect to a total station at the same time. To retrieve this setup information, connect to the instrument and select Read station setup data from instrument in the Total Station Setup screen:
