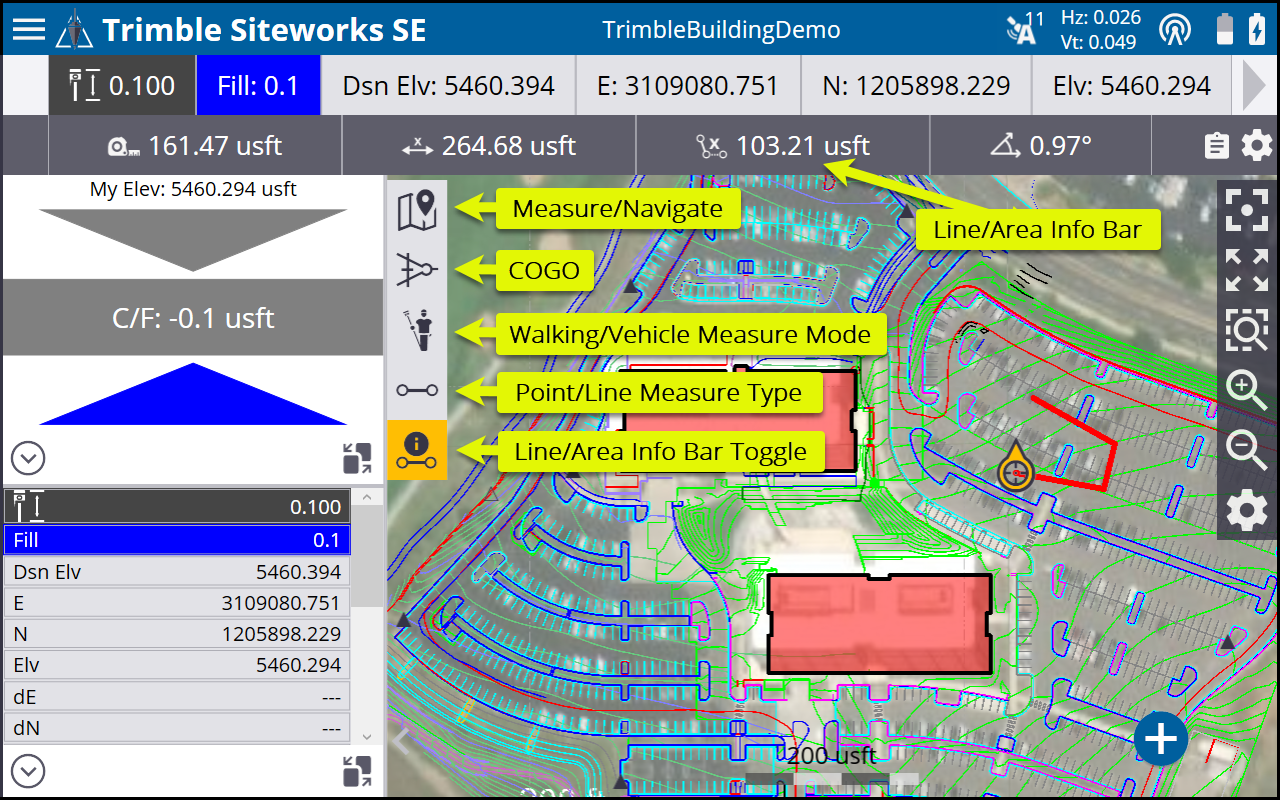

Map screen

The Siteworks SE Starter Edition main screen is similar to Siteworks Standard, with several notable differences. The overall side and main panel display control is the same, with the ability to collapse the side panels by tapping the small arrow to the right of the lower side panel. Changing the contents of the individual side panels is identical in Siteworks SE, achieved by tapping the small circled down arrow in the lower right of each side panel. The map controls (zoom, center, etc.) on the right side of the Plan View map screen are identical.

The main differences in the user interface in Siteworks SE compared to Siteworks Standard is the blue title bar in Siteworks SE, the actions of the icons used to switch between measure/navigate mode, a new COGO button to easily access COGO functions, interactions with switching between standing and vehicle modes, and choosing between a point or line measure type. There is also a new line/area information bar only available in Siteworks SE that can be toggled when measuring a line or area.
