Optional washer for the SPS985/SPS986 smart antenna

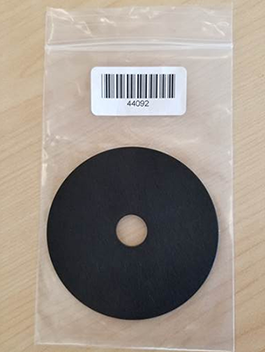

The washer (P/N 44092) is available in some SPS986 kits. It has a number of uses.

Use case 1:

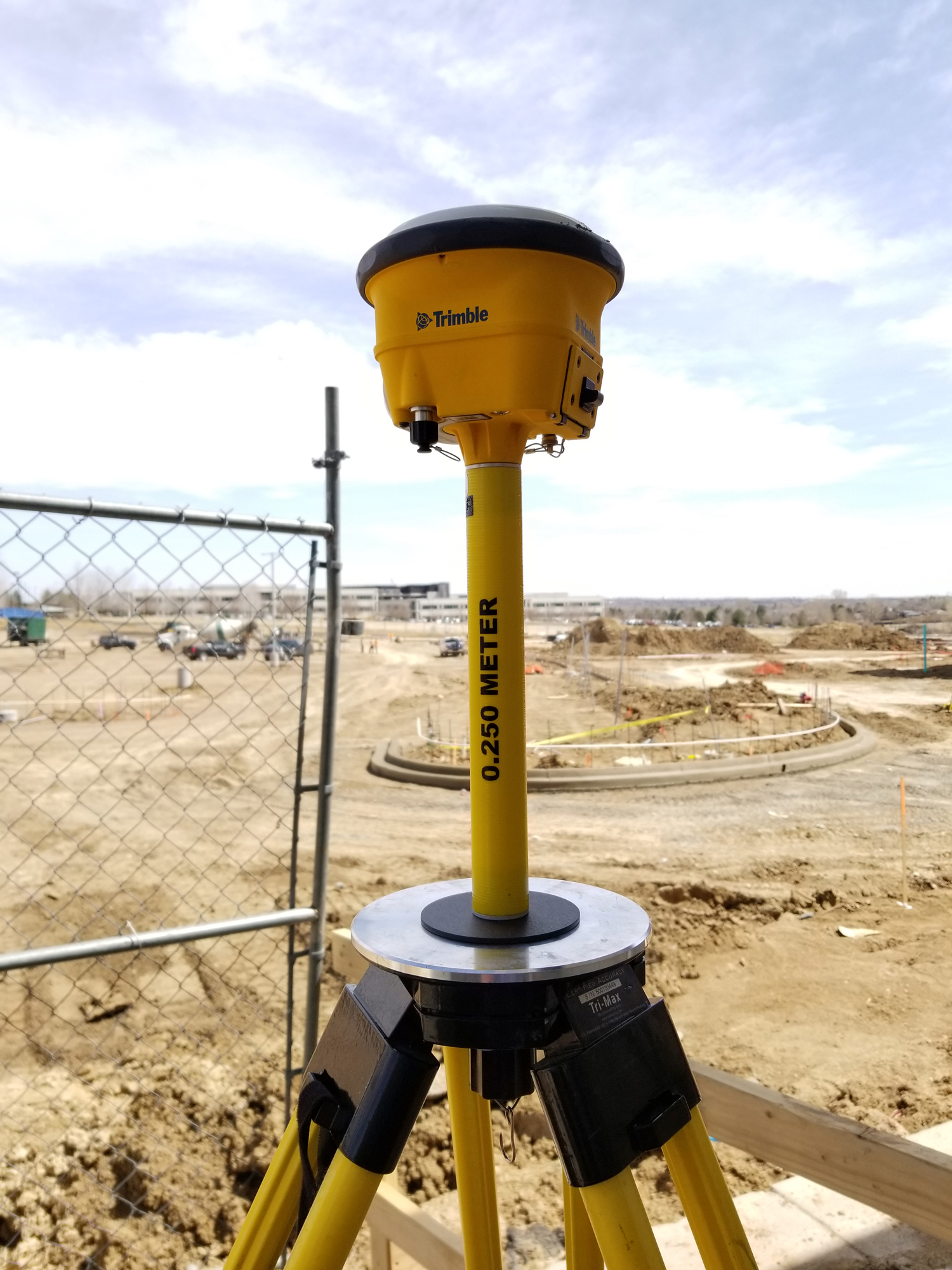

When you do not have a tribrach and you want to mount the SPS986 on a tripod. First, level the tripod plate and then place the 0.250 m extension rod followed by the washer.

Use case 2:

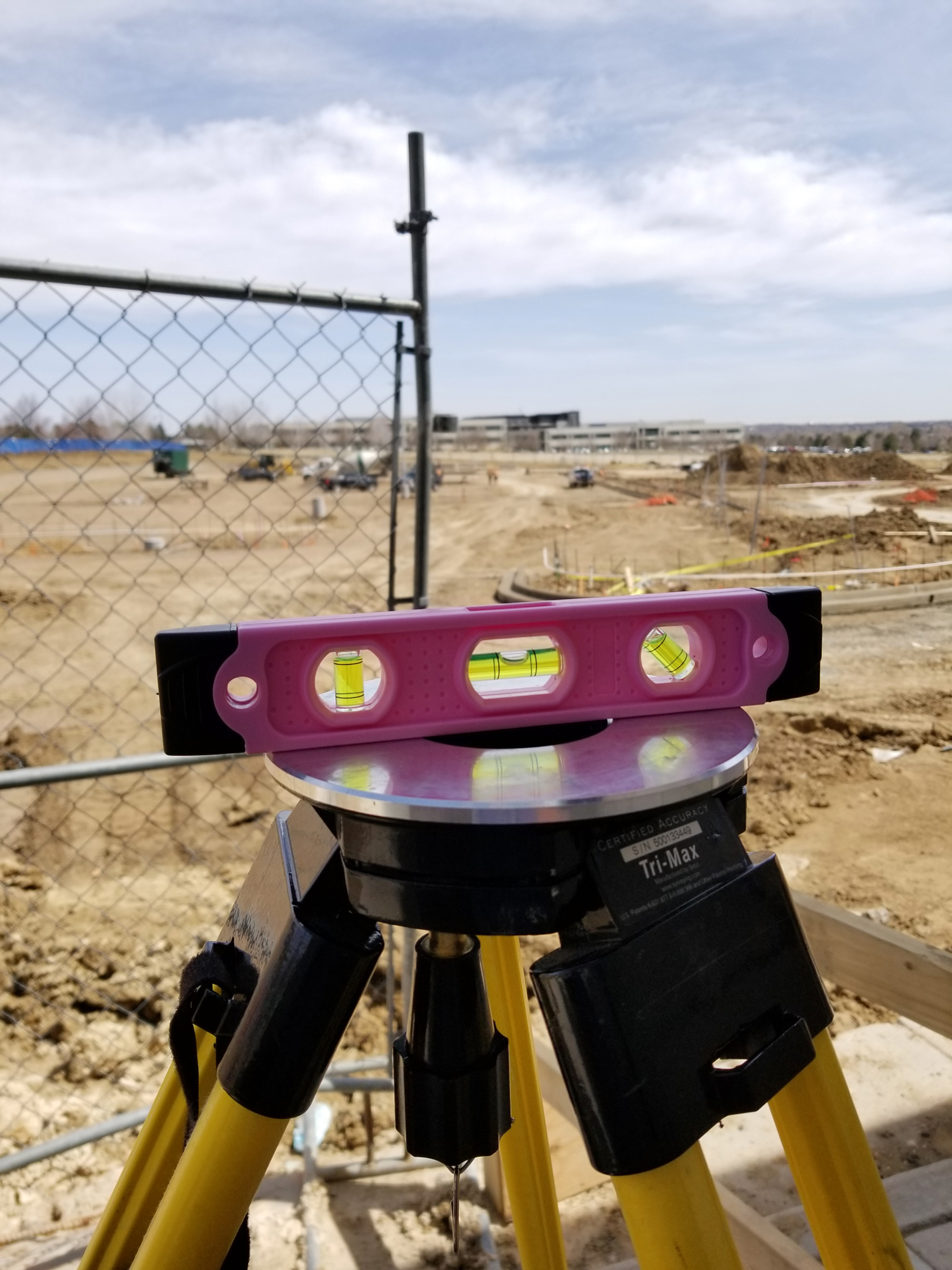

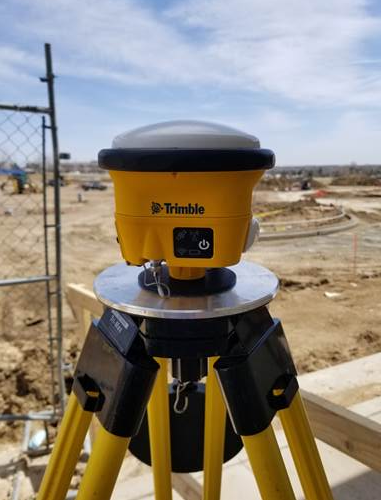

To calibrate the eBubble, first level the tripod plate and then place the SPS986 smart antenna with the washer on the tripod legs and carefully screw in the receiver. In the Siteworks or SCS900 software, go to the eBubble settings menu and tap the Calibrate Tilt Sensor button. Follow the instructions on the screen.

Use case 3:

To hold a rod with the 450 MHz external radio antenna on top of the tripod legs.
