Smart antenna dimensions

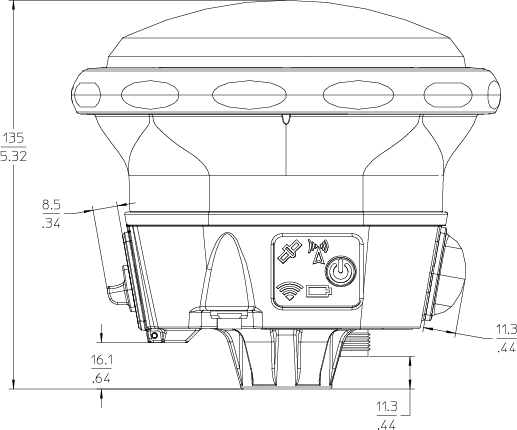

This drawing show the dimensions of the SPS98x smart antennas. It also provides the location and type of connectors used.

The larger dimensions shown in these drawings are millimeters. The smaller dimensions are inches.

❶

Radome locking ring and bumper

❷

GNSS antenna radome

❸

Wi-Fi and Bluetooth antenna radome

❶

Latch operation

❷

Battery door

❶	Lemo connector, USB and external power port	❸	TNC type antenna connector
❷	5/8-11 threaded mount	❹	Pressure test port

SPS985 with 84690-00 Quick Release
