Lemo connector

SPS modular receivers only.

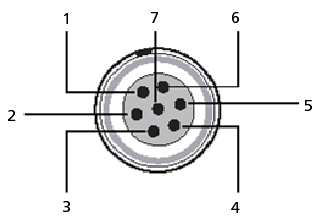

This is a 7-pin 0-shell Lemo connector.

Pin

Usage

1

RS-232 signal GND

2

GND

3

RS-232 serial data out

4

CAN-

5

CAN+

6

DC power In (+) 11.5 to 28 V DC

7

RS-232 serial data in
