Port 1 connector (SPS985/SPS986)
SPS985/SPS986 GNSS smart antenna only.

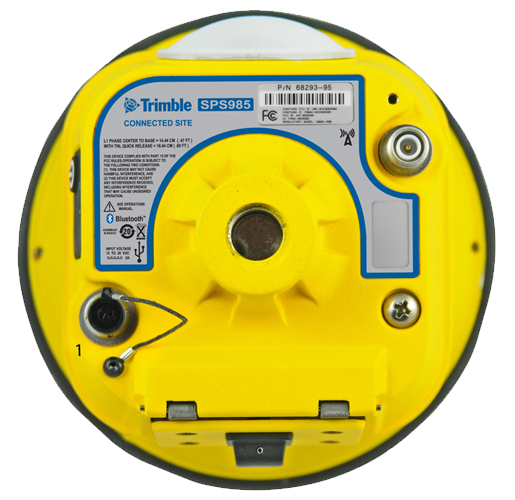

The port 1 connector (1) is located on the underside of the smart antenna:

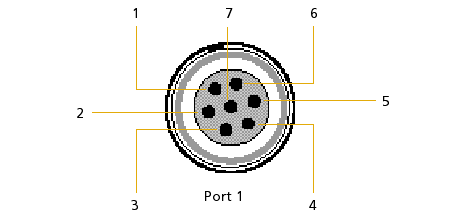

The following diagram shows the pinout connections:
Pinout function
|
Pin |
Port 1 – 7-pin Lemo |
|---|---|
|
1 |
Common Ground |
|
2 |
Common Ground |
|
3 |
USB_VBS: 5 V output when in Host mode. 5 V input when in Device mode |
|
4 |
USB Data Minus |
|
5 |
USB Data Plus |
|
6 |
DC Power in |
|
7 |
USB_ID (short to ground for Host mode operation. Leave open for Device mode operation. |
