SPS985/SPS986 Quick Release Adapter

The SPS985/SPS986 GNSS smart antenna has a quick release adapter that enables you to quickly mount the antenna to the pole, and then quickly unmount the antenna to move it to a vehicle or machine.

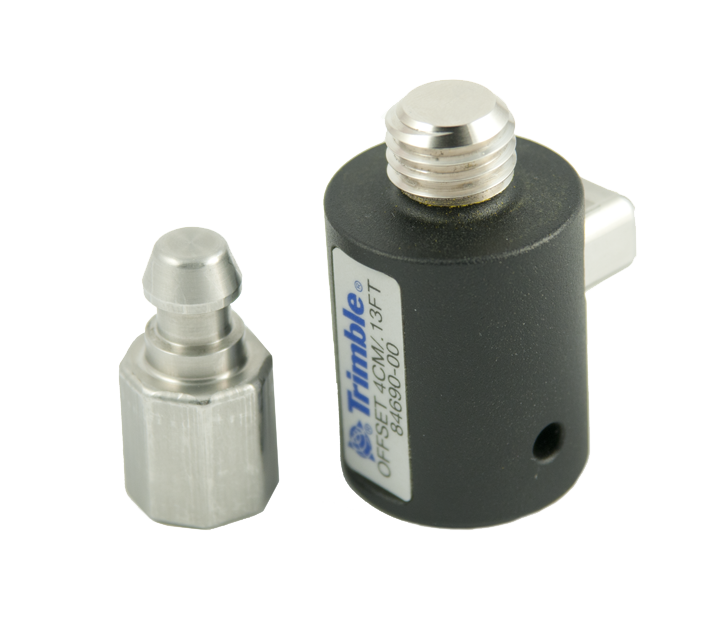

Quick Release Adapter kit (P/N 846902-00)

To mount the antenna to the pole using the quick release adapter:

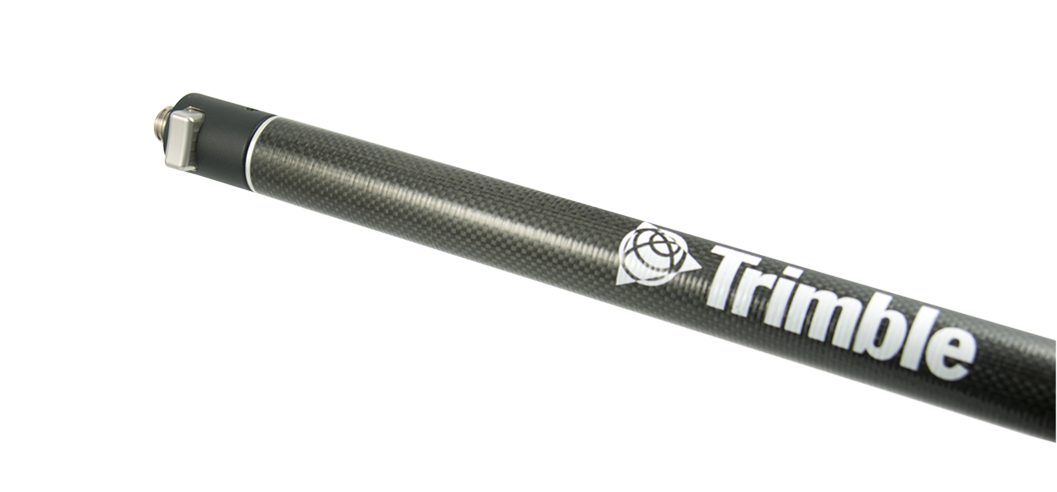

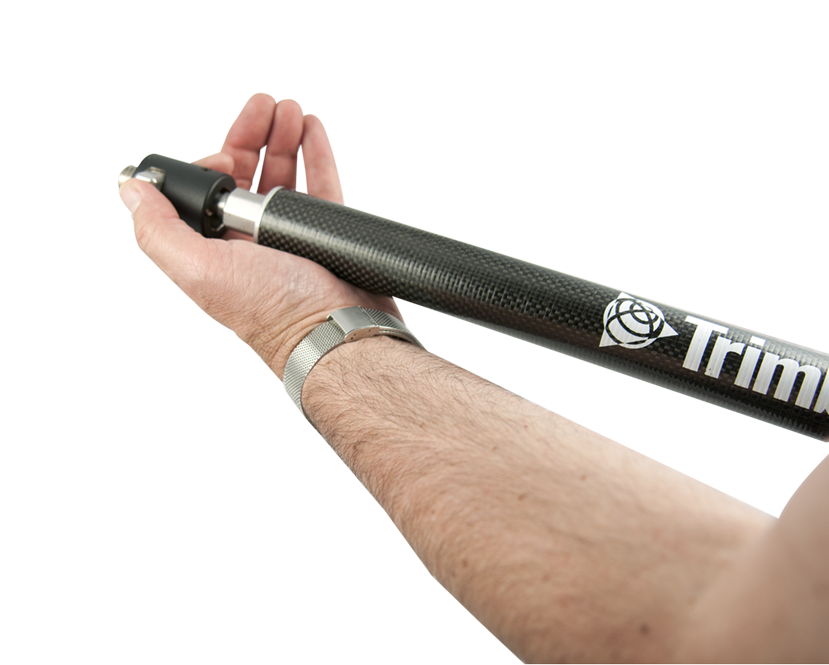

Screw the quick release adapter to the top of the range pole:

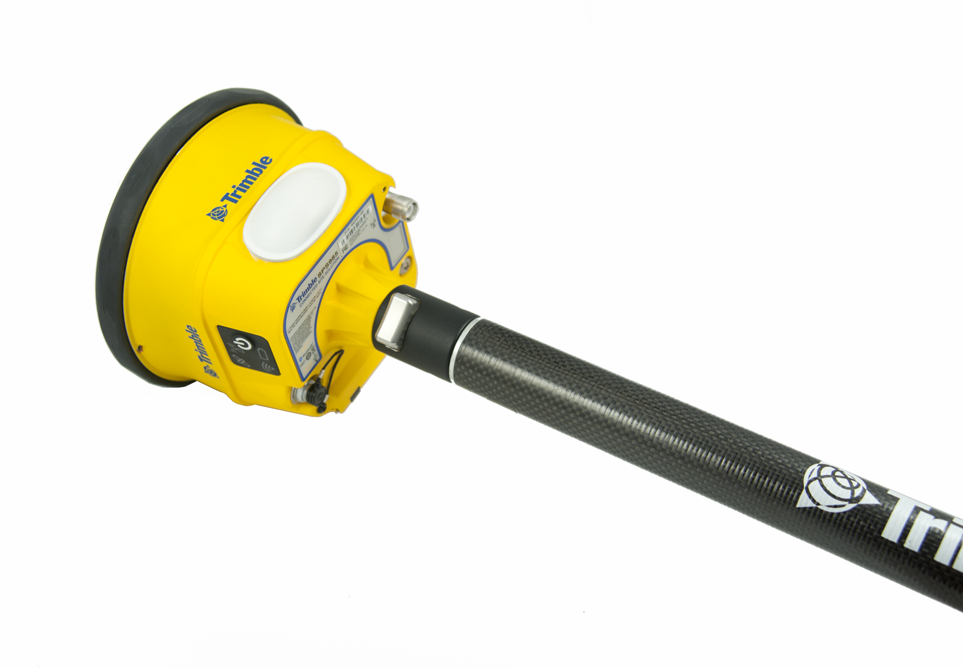

Screw the quick release adapter to the bottom of the smart antenna:

To unmount the smart antenna from the pole:

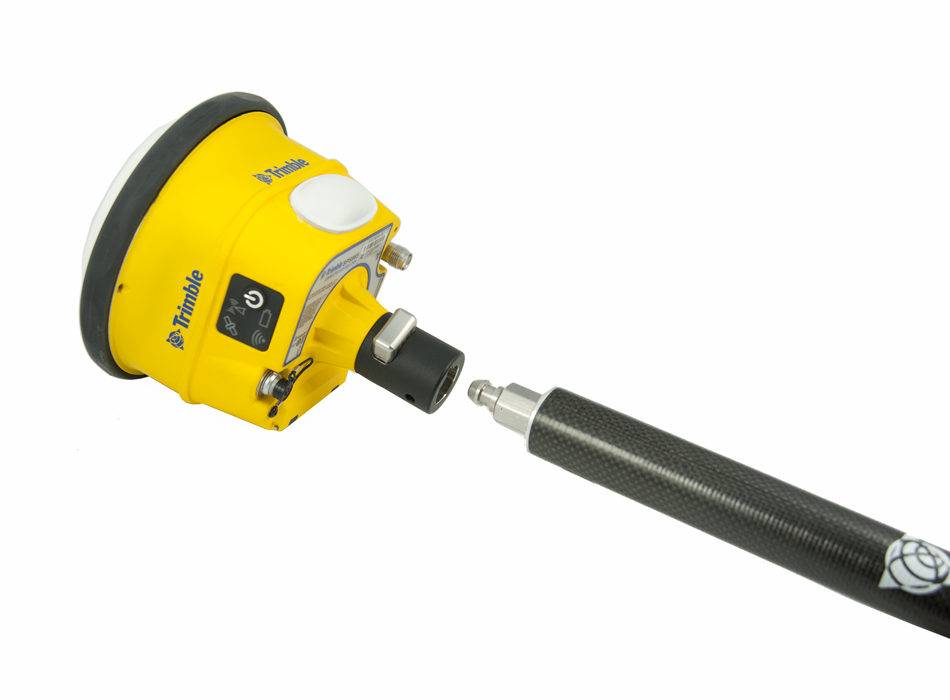

Press the button on the quick release adapter and then remove the range pole.
