Parts of the SPS585 GNSS Smart Antenna
All operating controls are located on the front panel. Ports and connectors are located on the bottom of the unit.
Front panel

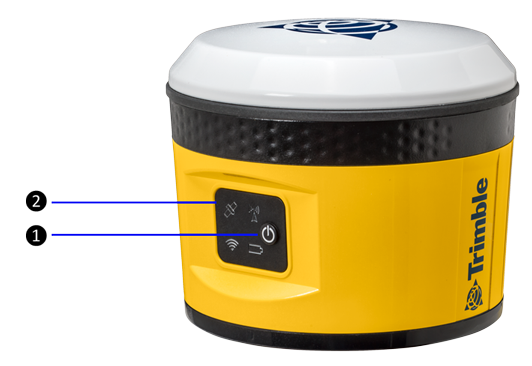

The front panel contains the Power button (❶) and four indicator LEDs (❷).
- The Power button controls the receiver’s power on or off functions and can be used to reset the receiver.
- The indicator LEDs show the status of the battery, corrections, wireless reception, and positioning.
The LEDs on the front panel indicate various operating conditions. For more information, see Button and LED Operations.
|
Icon |
Connections |
|
Icon |
Connection |
|---|---|---|---|---|
|
|
Power button |
|
|
Battery icon |
|
|
Position icon |
|
|
Wireless communications icon |
|
|
GNSS corrections icon |
|
|
|
Lower housing

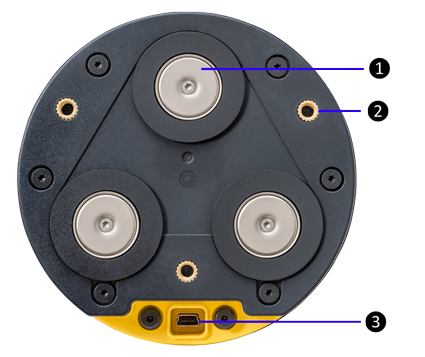

The lower housing contains the magnetic mounts (❶), three M5 threaded holes for permanent mounting (❷), and one USB port (❸).
