Using the Siteworks software to configure the base station, the rover, and the radios
As part of a total system solution for construction applications, the SPS receivers are operated by a Trimble controller running the Siteworks software. The software provides the tools to configure and start the receiver in the modes used by the system: RTK Base Station, RTK Rover, Location RTK modes, DGPS Rover, RTX Rover, OmniSTAR Rover, or SBAS Rover. Wizards help you through the process and, where possible, assign suitable default operational parameters to the system. This eliminates the need for an operator to know how to configure the receiver with the right settings.
The Siteworks software manages:
- the radio, whether internal or external
- all cellular communications components, such as modems and cell phones
- the use of the Bluetooth wireless technology
The software also scans communication ports on the receiver to identify connected devices. If the software cannot automatically identify the connected component, for example, a GNSS antenna, it offers options to help you manually select the correct component.

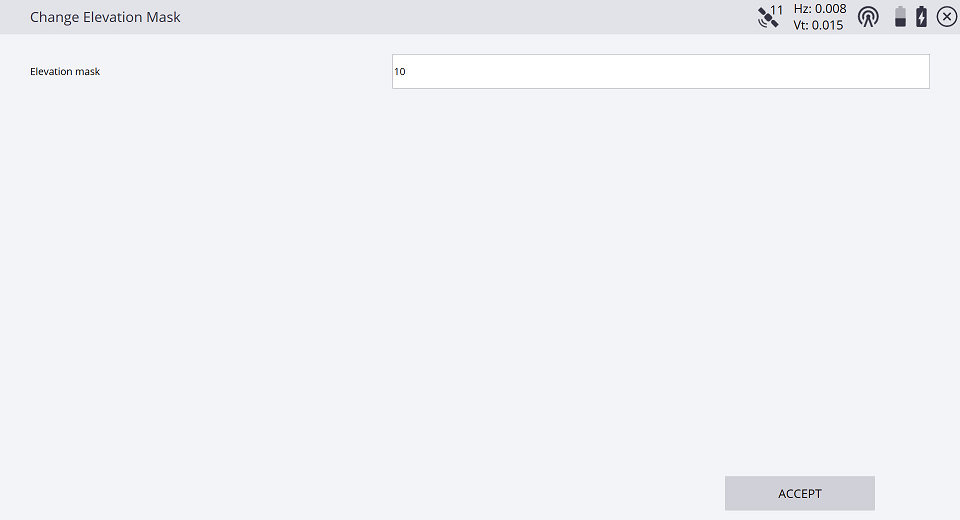

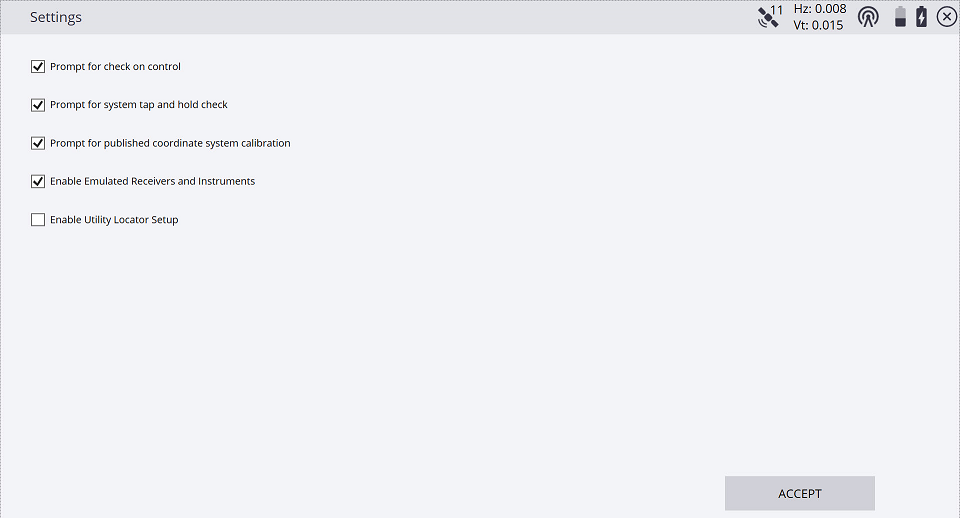

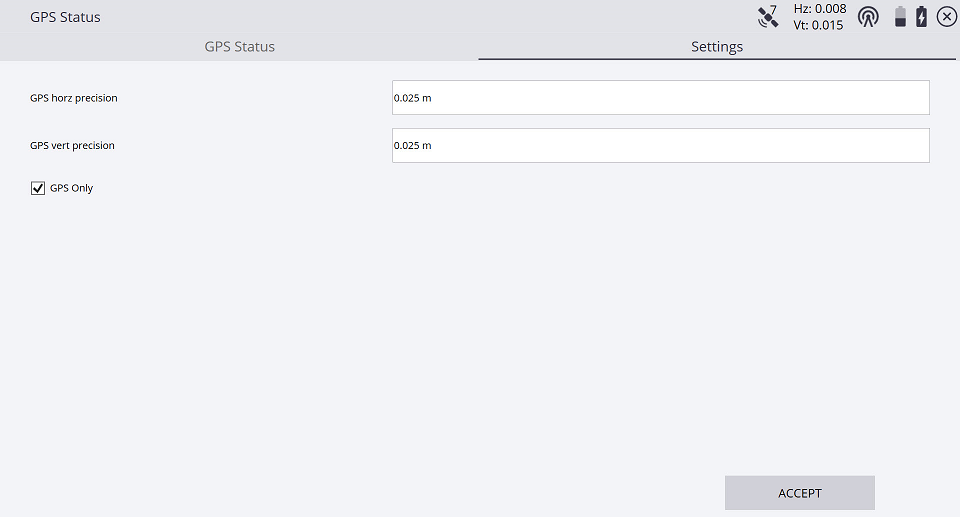

The Siteworks software allows you to set operational tolerances and settings (such as those shown below), which must be achieved before measurements can be accepted. When outside of these tolerances, the software warns you through on-screen messages or indications, and the non-automatic acceptance of recorded positions. To set operational tolerances, go to the Settings menu in the Siteworks software. For more information, refer to the Siteworks documentation.
