Installing a screen protector

The T100 tablet computer is fitted with a chemically strengthened glass touchscreen which is highly resistant to abrasion and impact damage. However to ensure maximum protection, it is recommended that you use a Trimble-approved T100 tablet computer screen protector.

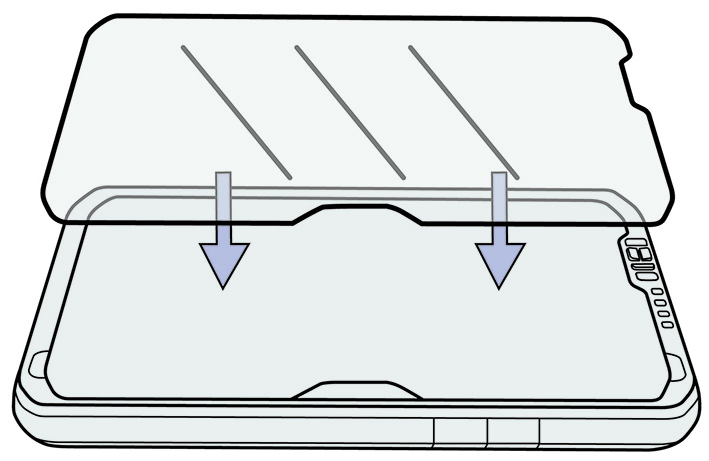

To install a screen protector:

1. Place the device on a clean, flat surface.

2. Clean the touchscreen with a damp cloth, alcohol wipe or similar.

3. Polish and dry the screen to remove any dust with a lint-free cleaning cloth.

4. Remove the protective film from the screen protector.

5. Align the screen protector with the glass portion of the display. Use the edge of the display as a guide. The screen protector should line up evenly with the edge of the keypad and the edges of the device.

6. Carefully lay the screen protector down on the screen. If you make a mistake and the glass looks off-center, you can gently lift the screen protector up and realign it. Then, once the protector is on the screen, give it a soft press in the center and allow the adhesive surface to grip to the screen naturally.

7. If there are any bubbles remaining, use the cloth provided to gently smooth them toward the edges of the screen protector.

For more information on where to purchase the correct screen protector for your device, contact your local reseller.
