Intersection of Segments Snap

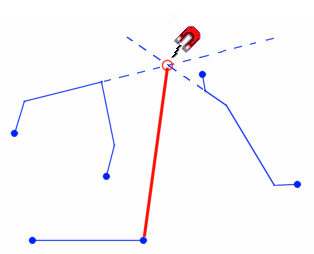

Use this command to calculate the projected intersection of two line or arc segments. If there are several possible intersections, the intersection closest to where the lines were picked is used.

Intersection of Segments Snap can be used in these commands:

• Coordinate

To use an Intersection of Segments Snap:

1. While in a coordinate control, right-click in a graphic view, and select Intersection > Intersection of Segments Snap from the context menu. The Intersection of Segments Snap command pane displays.
2. Pick a line segment in the view. The segment is recorded in the Line segment 1 box.
3. In the view, pick another line segment. The segment is recorded in the Line segment 2 box. The coordinate is recorded, and the command pane returns to the previous command.
