Radius of Arc Snap (distance)

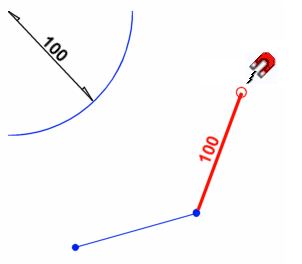

Use this command to calculate a distance based on the radius of an arc.
Radius of Arc Snap can be used in these controls:
To use a Radius of Arc Snap:
- While in a distance or offset control, right-click in a graphic view, and select Radius of Arc Snap from the context menu. The Radius of Arc Snap command pane displays.
- Pick an arc in the view. The arc's radius is recorded, and the command pane returns to the previous command.
