Create Surface Intersection Lines

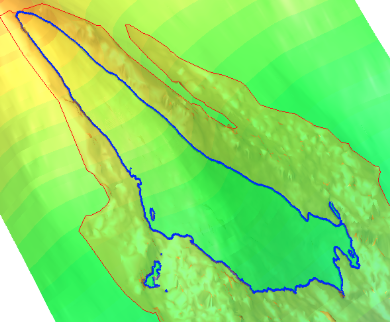

Use the Create Surface Intersection Lines command to create linestrings that connect the intersections of two surfaces (as illustrated by the blue lines in the following example).

Prerequisites:

• See the Subscription Plans page. For a license matrix by command, see the License page in the TBC Community. Also see View and manage licensed features.
• Two coincident surfaces

To create surface intersection lines:

1. Select Create Surface Intersection Lines in Surfaces > Create to display the Create Surface Intersection Lines command pane.
2. Make any changes in the Line Settings fields as necessary.

   The Name field is optional. If used, all intersection lines created will have this name.

3. In the Surfaces group, select the two intersecting surfaces for which you want to create linestrings.

   Note: The toolbar in the Create Surface Intersection Lines command pane includes handy shortcuts to several surface-related commands.

4. Click Apply.
