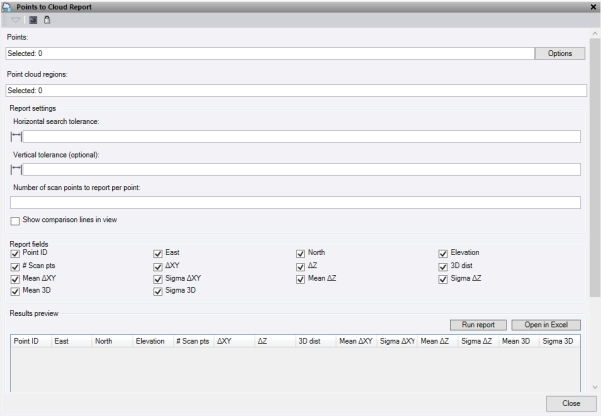

Run a Points to Cloud Report

The Points to Cloud Report command compares points to a point cloud region or scan to determine the nearest scan point to the selected point and provides a comparison between the derived point pairs. This tool compares measured ground check points with computed point clouds from drone surveys and slam scans.

  1. Click in the Points field, then in a graphic view select the points to compare to the cloud. Click Options for additional selection options.
  2. Select the Point cloud regions to use for the comparison. You can select multiple point cloud regions.
  3. Enter a Horizontal search tolerance distance to scan the point cloud and find scan points that fall in this radius.
  4. Optionally, enter a Vertical tolerance. Leave this field blank to use the same value as the horizontal.
  5. Enter the Number of scan points to report around each selected point.
  6. Check Show comparison lines in view to see the vectors between the point and the scan points.
  7. Click Run report to calculate results and show in the preview table.
  8. Click Open in Excel to report all the selected fields into an Excel sheet.
  9. Click Close to close the command pane.

    Note: This feature does not work on vertical walls.

Report fields:

Option

Description

Point ID

Comparison point ID

East

Easting coordinate

North

Northing coordinate

Elevation

Elevation

# Scan pts

Number of scan points that are found within the search tolerance

Delta XY

Horizontal distance delta between the point and the scan point

Delta Z

Vertical distance delta between the point and the scan point

3D dist

Slope distance between the point and the scan point

Mean delta XY

Mean horizontal distance of the scan points reported

Sigma delta XY

Standard deviation of the horizontal distance of the scan points reported

Mean delta Z

Mean vertical distance of the scan points reported

Sigma delta Z

Standard deviation of the vertical distance of the scan points reported

Mean 3D

Mean slope distance of the scan points reported

Sigma 3D

Standard deviation of the slope distance of the scan points reported
