Unlink Linestrings

The Unlink Linestrings command enables you to convert a linestring using Point IDs for its location into a coordinate-based linestring.

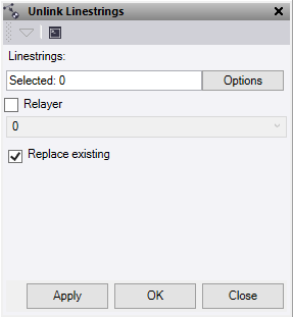

1. Click in the Linestrings selection field, then in a graphic view select the linestring to convert.
2. Optionally, check Relayer and select a new layer for the linestring.
3. Check Replace existing to replace the original linestring.
4. Click Apply to apply the changes and keep the Unlink Linestrings command pane open, or click OK to apply the changes and close the Unlink Linestrings command pane.

   The linestring segments on the horizontal tab are now coordinate based
