Parts of the TDC600 handheld

1 Camera (front)

2 Touchscreen

3 Programmable buttons (x4). See Assigning apps to the programmable buttons

4 Android All open applications

5 Android Home button

6 Android Back button

7 Microphone

8 Power button

9 Speaker (phone)

10 Volume control buttons

11 Light sensor

12 Earpiece

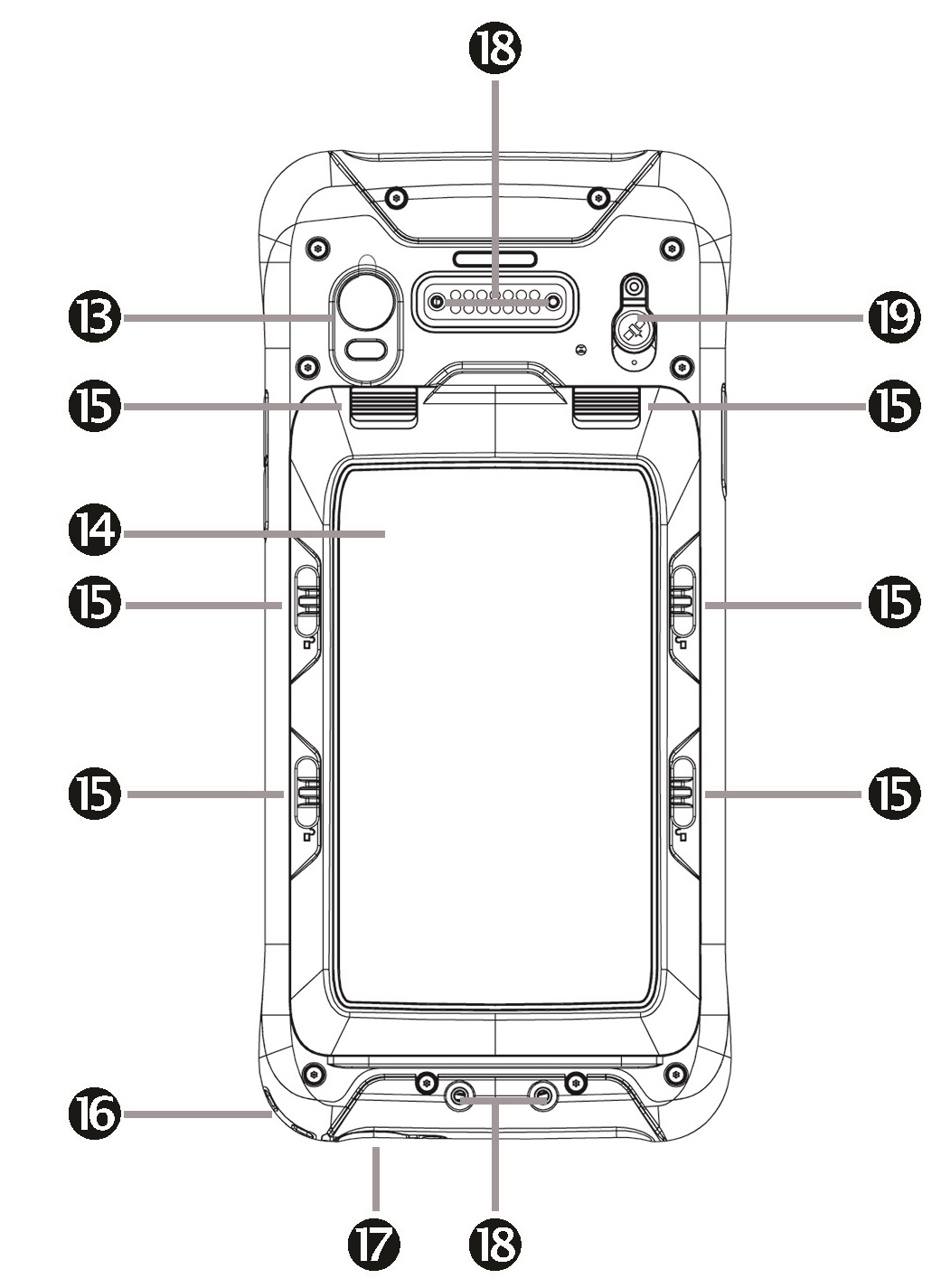

13 Camera (rear) + LED flash. Remove the protective film from the camera lens before use.

14 Battery cover

15 Battery cover locks

16 Lanyard attachment point *

17 USB /charging port

18 Handstrap attachment points (device shown here without attachments)

19 External GNSS antenna port

*Note - The device does not have a stylus accessory, but a capacitive stylus can be used with the device and tethered to the device here.
