Checking the charge level of the Li-35 accessory battery pack using the battery indicator

You can check the battery charge level of the Li-35 accessory battery pack while it is removed from the device.

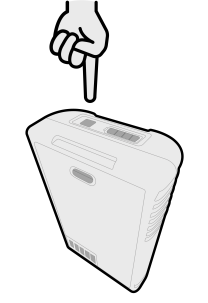

Press-hold the button on the battery to check the battery charge level.

The LEDs on the battery will show one of the following:

	No LEDs are lit: Battery is empty, or is in Shelf mode (see Charging the device for the first time).
	Green LED flashing = < 10% charged
	Green LED solidly lit = 10-25% charged
	25-50% charged
	50-75% charged
	ALL LEDs are lit: 75-100% charged

For charging options, see:

• Charging the internal batteries and the optional Li-35 accessory battery pack while installed in the TSC5 controller / Ranger 5 data collector

• Charging the removable accessory battery pack separately from the TSC5 controller / Ranger 5 data collector
