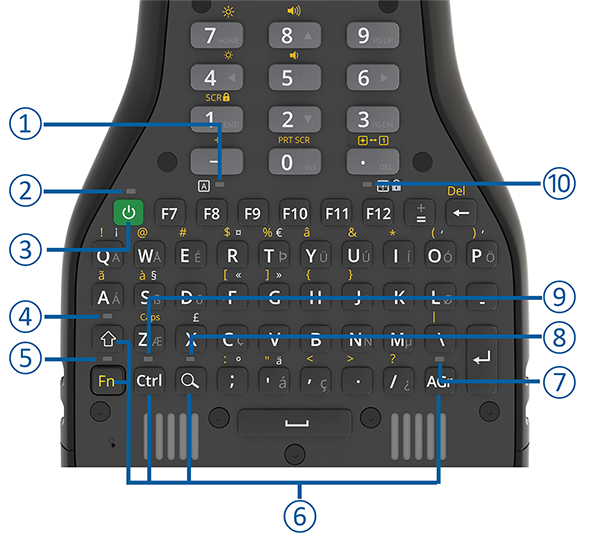

Keyboard status LEDs

There are 8 LEDs on the keyboard, including five Modifier / Sticky key LEDs. The Sticky key LEDs represent the sticky state of the Modifier key it is located above.

The different LED states are:



No LEDs On

None of the Modifier keys are set as "sticky”.

1

Caps Lock LED

ON: Caps locked.

OFF (Default): Caps unlocked.

2

Battery Charging LED

See Checking the battery charge levels and LED status

3

Power key



4

Shift key LED

ON= the Shift key is set as "sticky”.

5

Fn key LED

ON= the Fn key is set as "sticky”.

6

Modifier keys

Shift, Fn, Ctrl, Search, AGr

7

AGr key LED

ON= the AGr key is set as "sticky”.

8

Search key LED

ON= the Search key is set as "sticky”.

9

Ctrl key LED

ON = the Ctrl key is set as "sticky”.

10

Cursor / Num Lock LED

OFF = Num Lock is on (this is the default) and Cursor Navigation mode is off. The numeric keyboard performs the number functions.

ON = Cursor Lock is set as "sticky”; the Cursor Navigation mode is on, and the Numeric function is off (the numeric keyboard performs the cursor navigation function).

To turn off Cursor Navigation mode and turn on the Numeric function, press Fn + “.”.

See Modifier keys and Sticky keys: modes and settings for more information.
