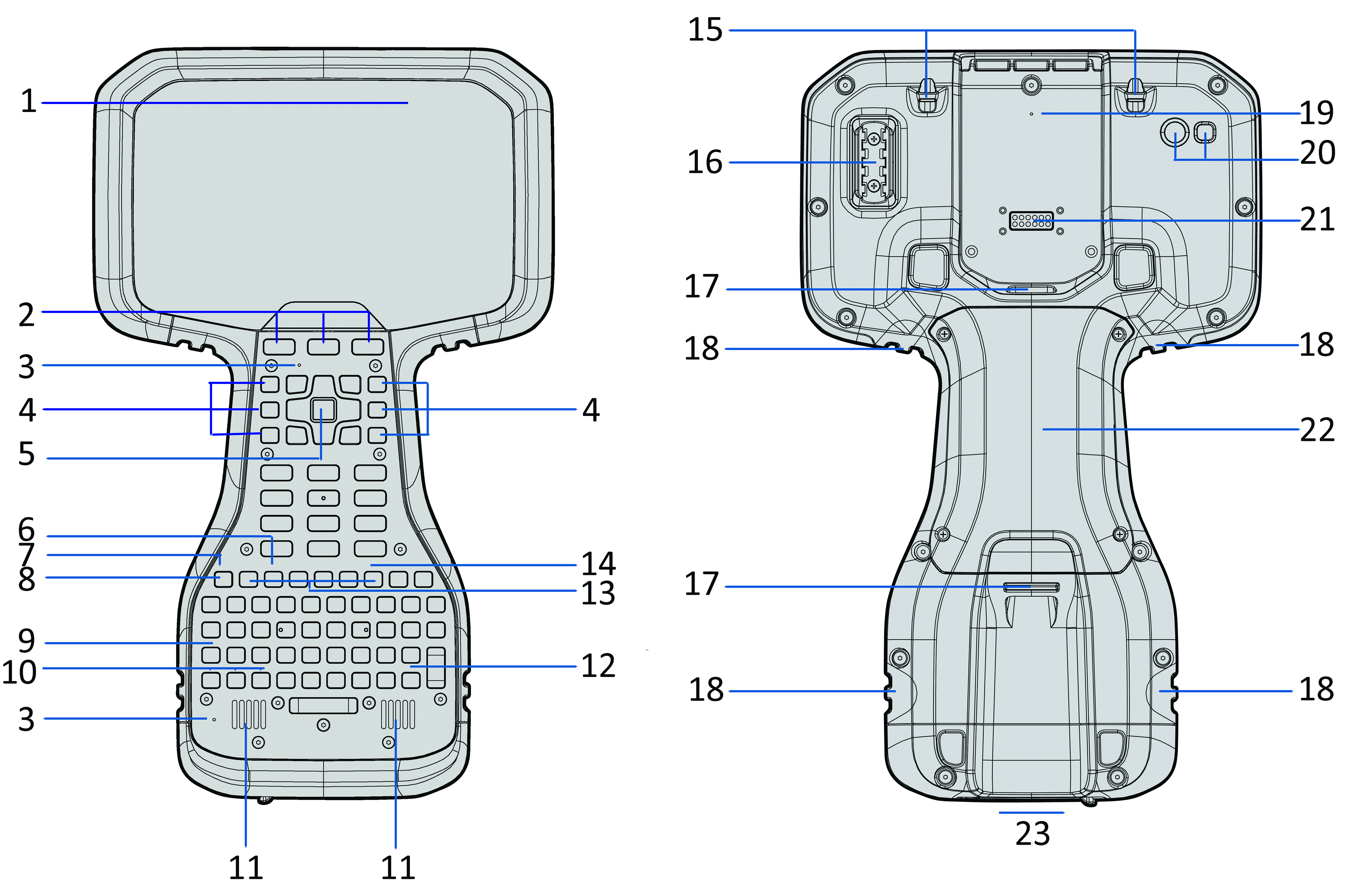

Parts of the TSC5 controller / Ranger 5 data collector
|
1 |
Ambient light sensor |
13 |
Function Keys (F7 - F12) |
|
2 |
Android keys |
14 |
Cursor lock LED |
|
3 |
Microphone (x2) |
15 |
Stylus tether points |
|
4 |
Function keys (F1 - F3, F4 - F6) |
16 |
Stylus holder |
|
5 |
OK and directional keys |
17 |
Pole mount latches (x2) |
|
6 |
CAPS lock LED |
18 |
Handstrap connector points (x4) |
|
7 |
Battery charging LED |
19 |
Gore Vent: DO NOT COVER! |
|
8 |
Power key |
20 |
Camera & camera flash |
|
9 |
Shift LED |
21 |
Trimble Empower module bay |
|
10 |
LEDs left to right; Fn, Ctrl, Search |
22 |
Cover for |
|
11 12 |
Speakers (x2) AGr LED |
23 |
USB-C port, bottom of device under port cover |
