Installing and removing the optional accessory battery pack

The TSC510 controller contains internal battery which are not removable. An optional, user-replaceable accessory battery pack is also available, which enables you to double the battery run-time.

The accessory Li-35 battery part number 220200 is compatible with the TSC510 controller.

The older Li-35 battery part number 120200 is not compatible with the TSC510 controller. The ridge/grip design on the sides of the battery will not allow an older battery part number 120200 to be installed in the TSC510 controller.

Check the label on the battery for the part number.

You can charge the battery pack when it is installed in the device, or to decrease the total charging time, you can charge it externally.

The device has an IP rating of IP68, predicated on the battery door being properly installed. If the battery door is removed, then the IP rating drops to IP54. Please be aware of the lowered rating. As such, care should be taken when opening the battery door to keep water and debris out of the enclosure.

Water, dust, dirt or debris may collect around the battery contacts causing performance issues.

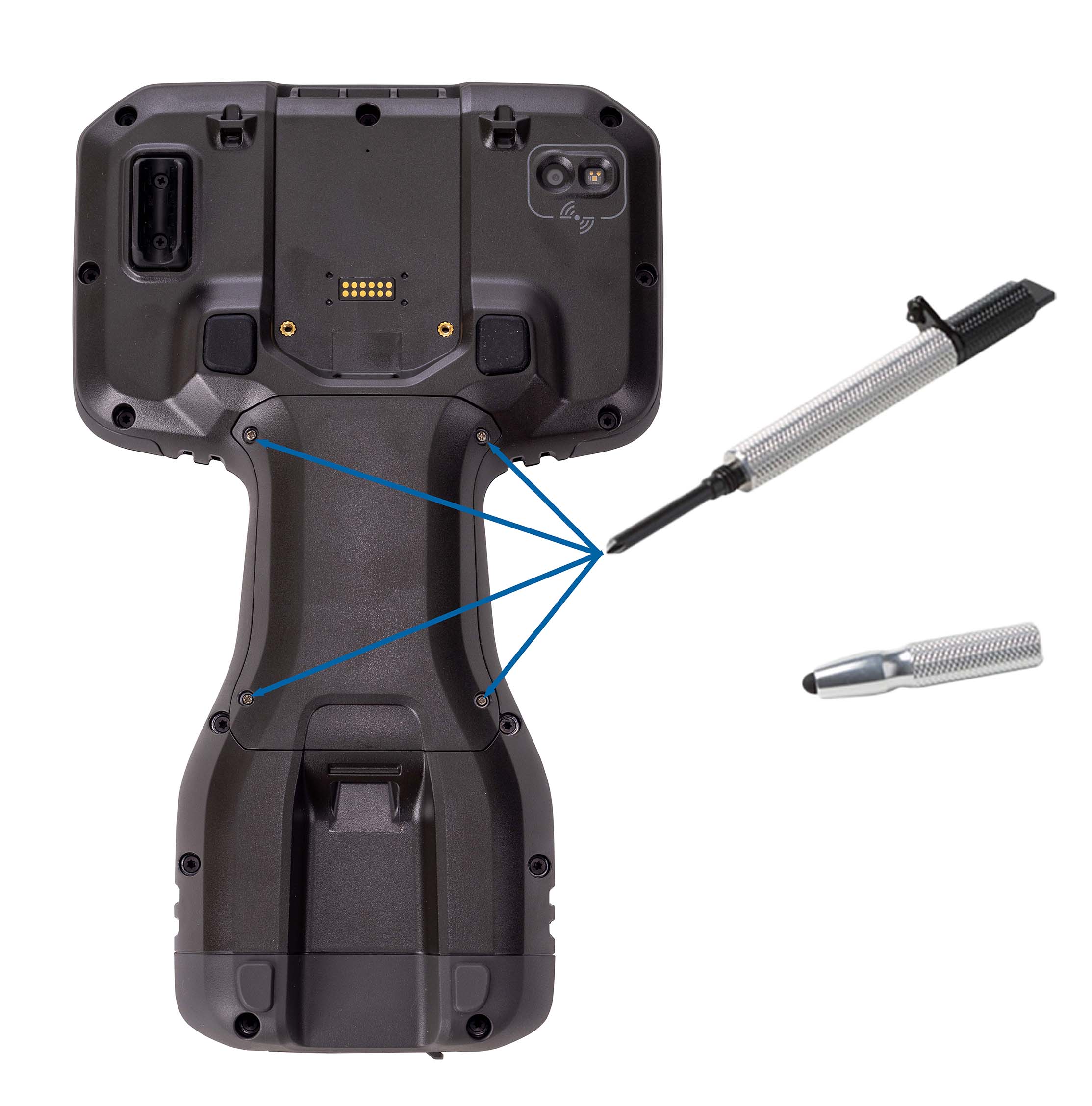

  1. Using the Philips screwdriver, loosen the 4 screws to remove the battery bay cover from the back of the device.

  2. Insert the battery in the battery cavity; or remove a battery by lifting it up and out.

    If you are replacing the battery, make sure the replacement battery is fully charged.

  3. Replace the battery bay cover and tighten the 4 screws using the Philips screwdriver.
