Inserting SD and SIM cards

The device includes 128 GB of onboard storage. To expand the storage, use an SDXC card. SDXC cards up to 512 GB are supported.

To use cellular data, you will need a MicroSIM card and a data plan from your local cellular service provider to use this feature. See Working with mobile broadband for more information.

The SD/SIM card door can be damaged if handled carelessly. Take care not to twist or warp the door when opening or closing it.

  1. If the device is on, turn it off; tap / Power/ Shut down.

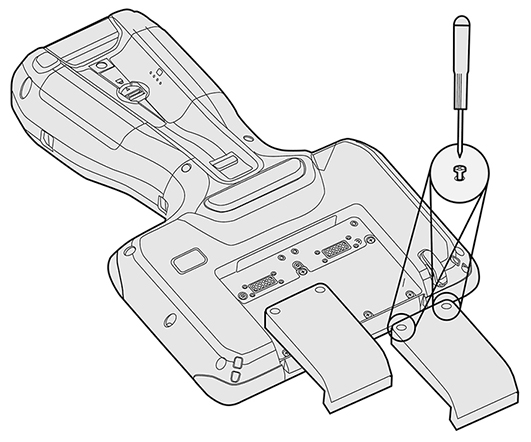

  2. Using a Phillips screwdriver, loosen the screws to remove both the module bay covers from the back of the device.

    If you are using Empower modules, remove them in the same way.

  3. Using a Phillips screwdriver, remove the screws to open the SD/SIM bay door.

  4. Place the SD card and the SIM card into their respective slots.

  5. Close the SD/SIM bay door, and tighten the screws.

  6. Replace the module bay covers, or if using modules, re-attach them. See Using Empower modules.
