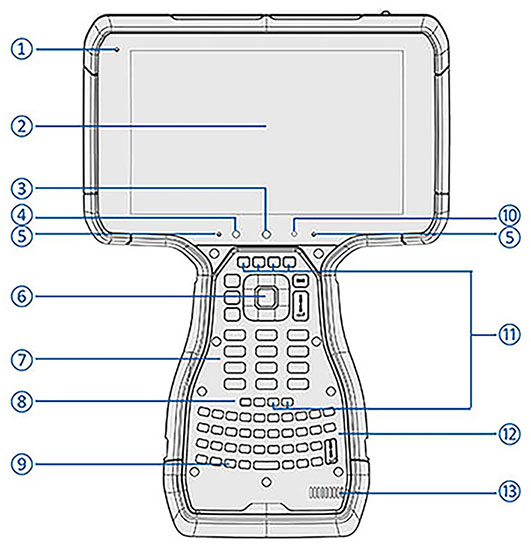

Parts of the TSC7 controller / Ranger 7 data collector
|
1 |
Power / Charging LED |
8 |
Power Button |
|
2 |
Touchscreen |
9 |
Windows Key |
|
3 |
Camera - Front 2 MP, Fixed-Focus |
10 |
Front Camera LED; |
|
4 |
Light / Proximity Sensor |
11 |
Function Keys (x 6). |
|
5 |
Microphone - Left / Right |
12 |
Full QWERTY Keypad. |
|
6 |
OK Key |
13 |
Speaker |
|
7 |
Numeric Keypad |
|
|
|
1 |
Stylus Tether Points |
7 |
Battery Lock |
|
2 |
Stylus bay |
8 |
Swappable / Replaceable I/O Boot |
|
3 |
SD and SIM Card Slots, behind Modules / Module Bay Covers |
9 |
Empower Module Bays (x 2) |
|
4 |
Stylus Bay Drainage Hole |
10 |
Camera - Rear, 8 MP, Auto-Focus |
|
5 |
Handstrap Connector Points |
11 |
Pole Mount Latch |
|
6 |
Hot-Swappable, Field-Swappable, Long Life Battery Pack (2 x Batteries) |
12 |
Battery LEDs |
|

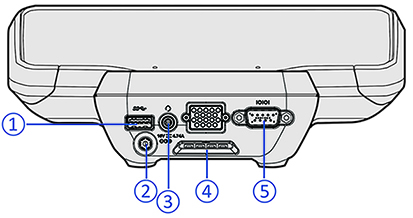

1 |
USB Connector |
4 |
Device Mount Hook |
|
2 |
Charging Port |
5 |
DB9 / RS-232 Serial Connector |
|
3 |
Audio Jack |
|
Note - An alternate boot is also available, with 2 USB ports instead of 1 USB port / 1 Serial port. |
