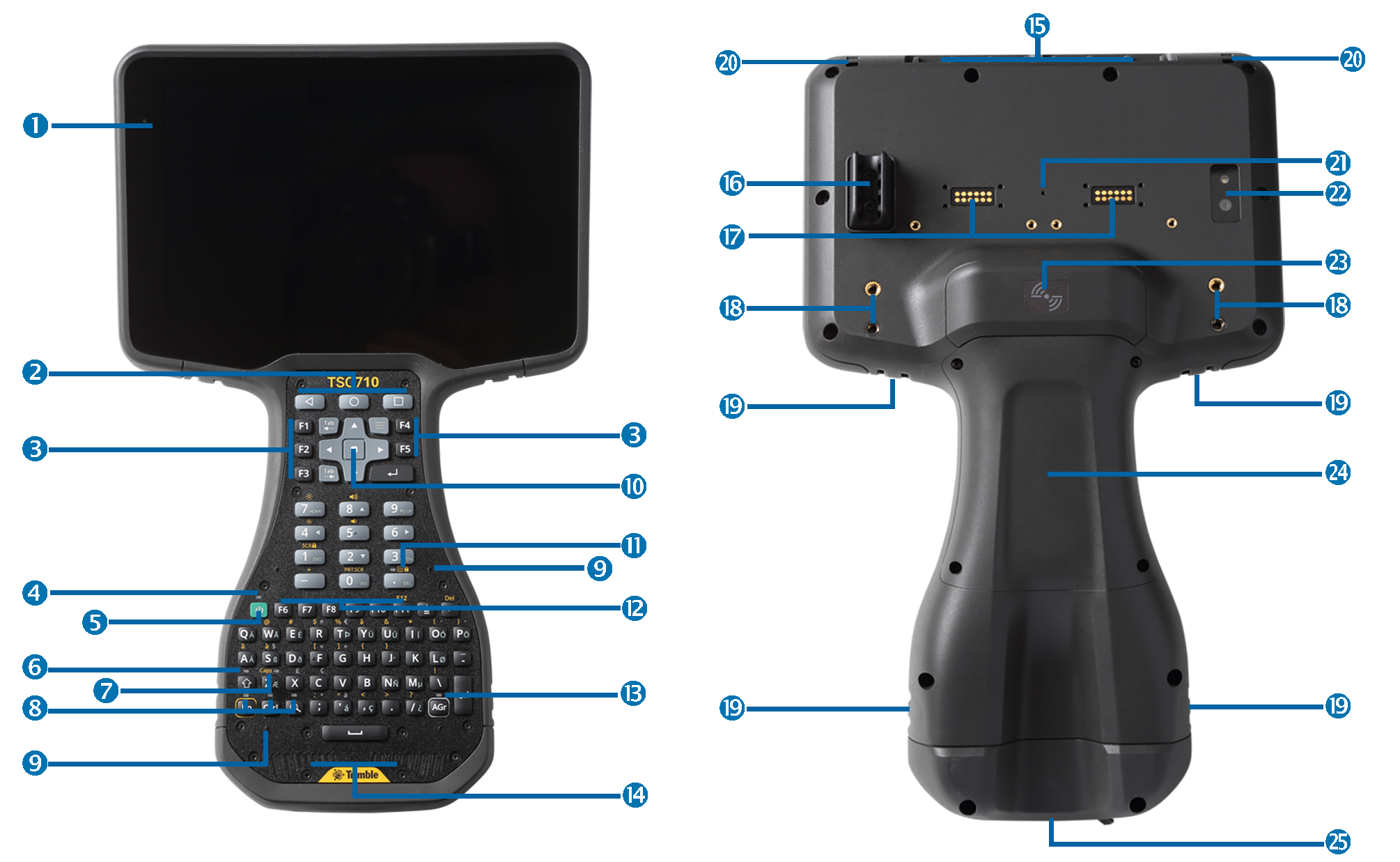

Parts of the TSC710 controller
| 1 - Ambient light sensor | 14 - Speaker |
| 2 - Android keys | 15 - Trimble Empower module bays |
| 3 - Function keys (F1 - F3, F4 - F5) | 16 - Stylus holder |
| 4 - Power / battery charging LED | 17 - Trimble Empower module contacts |
| 5 - Power key | 18 - Pole mount screws |
| 6 - Shift LED | 19 - Handstrap connector points (x4) |
| 7 - CAPS lock LED | 20 - Stylus tether points |
| 8 - LEDs left to right; Fn, Ctrl, Search | 21 - Gore Vent: DO NOT COVER! |
| 9 - Microphone (x2) | 22 - Camera & camera flash |
| 10 - OK and directional keys | 23 - NFC Antenna |
|
11 - Cursor lock LED |
24 - Cover for optional battery pack & SIM card slot |
| 12 - Function Keys (F6 - F11; F12 = Shift+F11) | 25 - USB-C port, bottom of device under port cover |
| 13 - AGr LED |
