Sync Data from Trimble GCS900

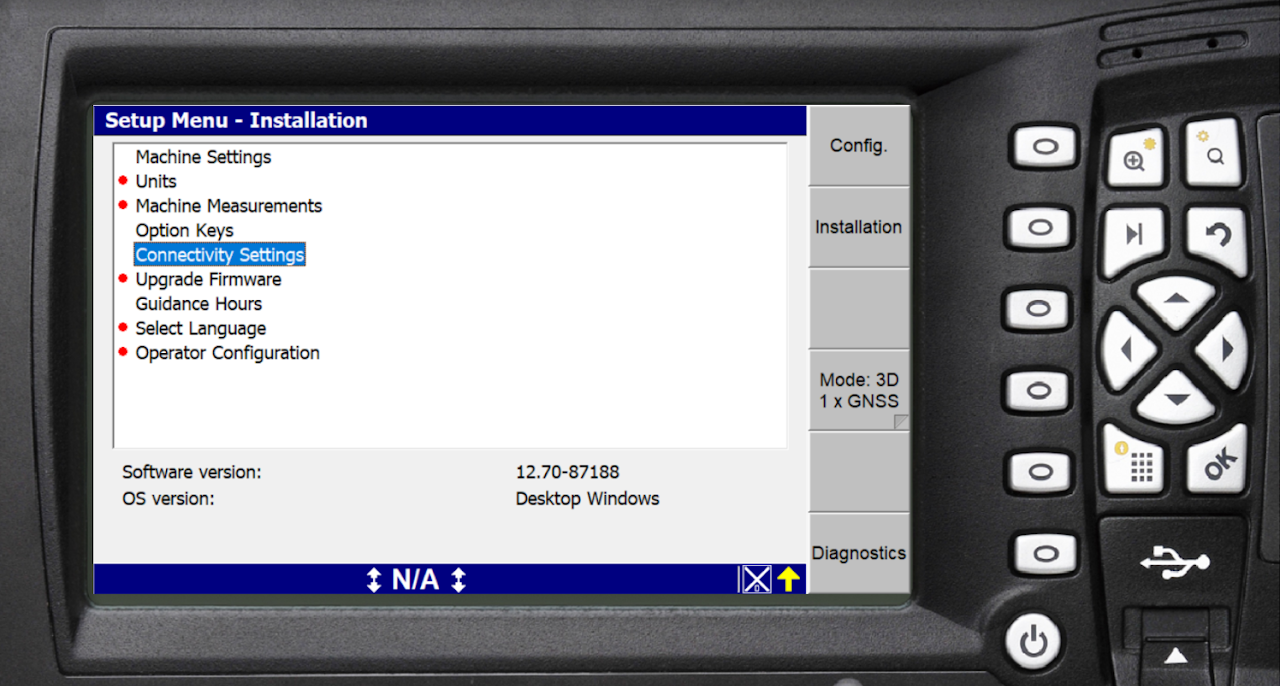

1. Login to Trimble GCS900 and navigate to Setup Menu - Installation > Connectivity Settings.

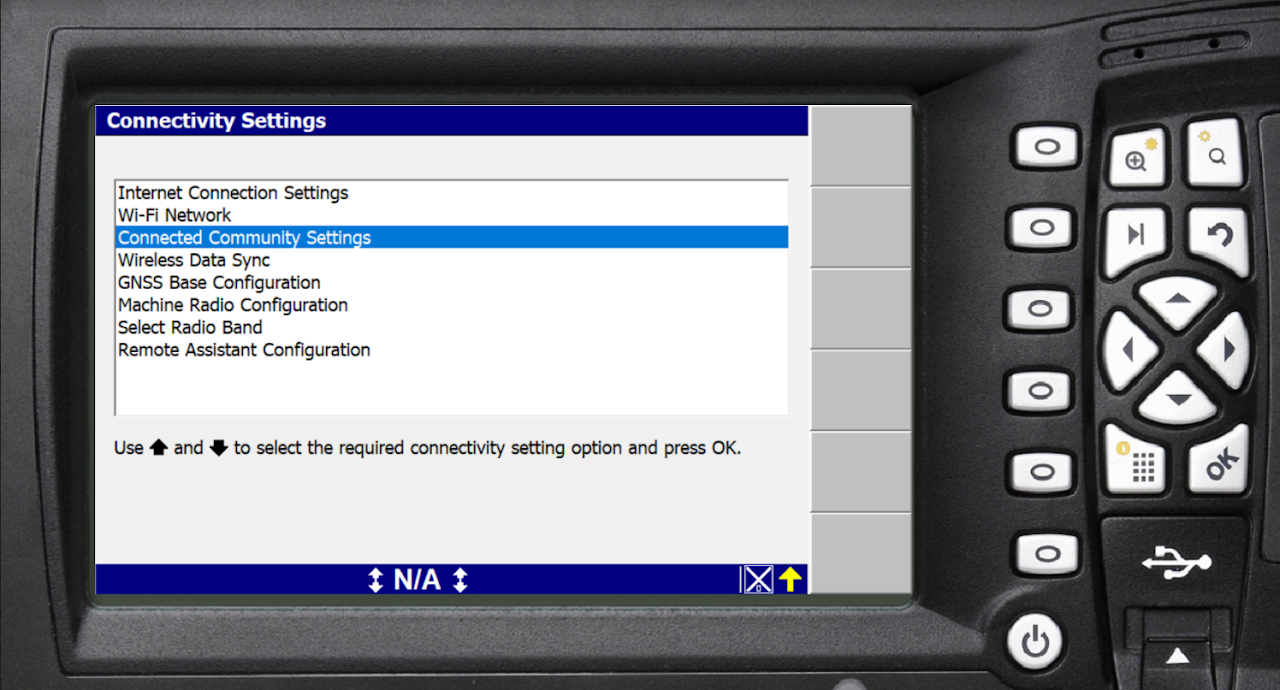

2. On Connectivity Settings page, select Connected Community Settings.

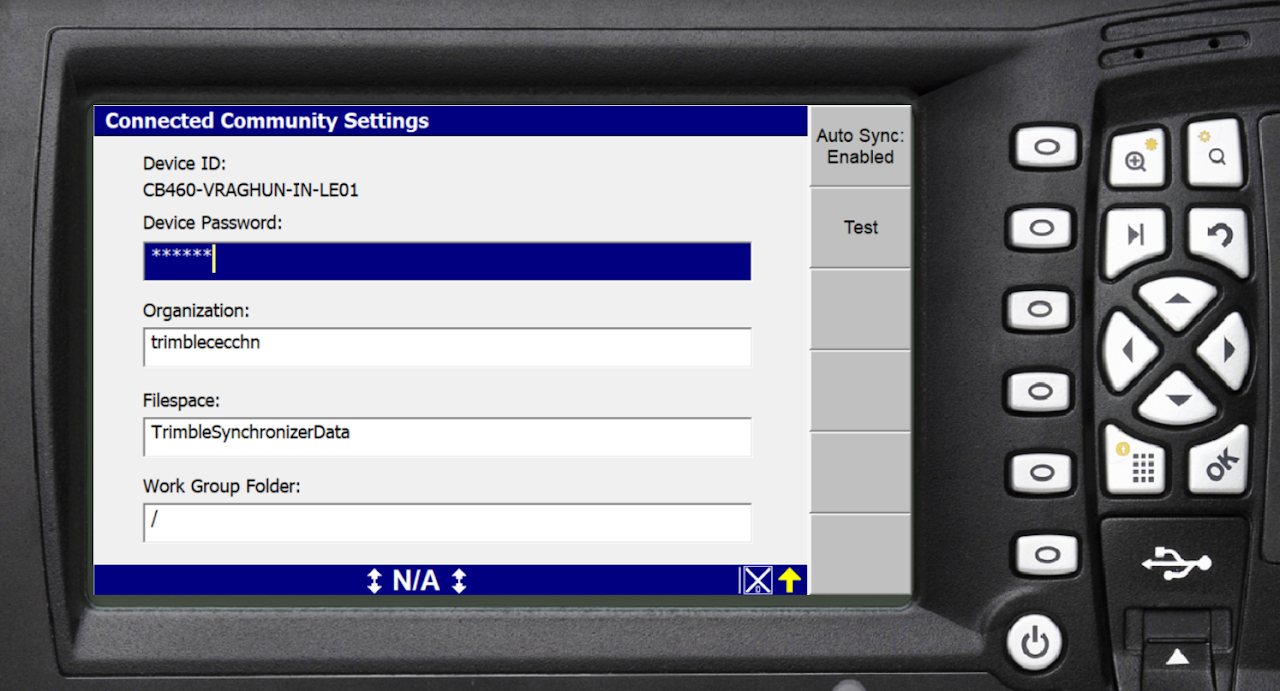

3. On Connected Community Settings page, enter your Organization and Device Password (as entered in WorksManager) > click Test.

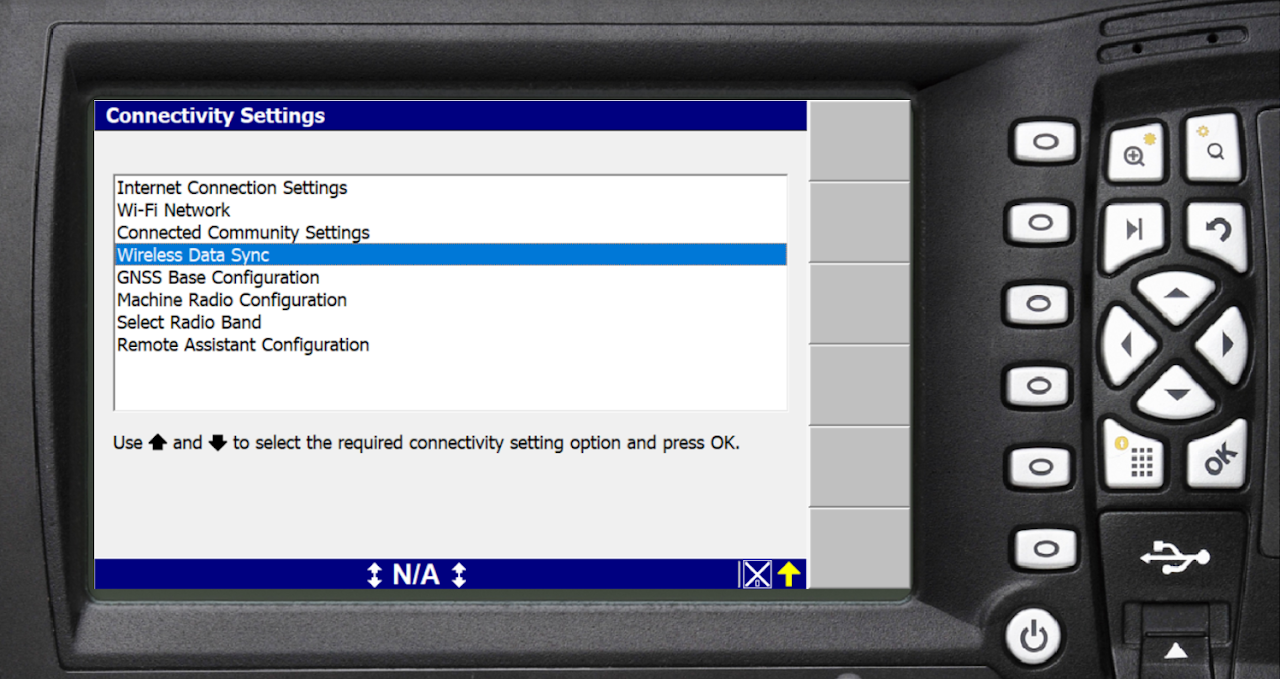

4. On the Connectivity Settings page, select Wireless Data Sync.

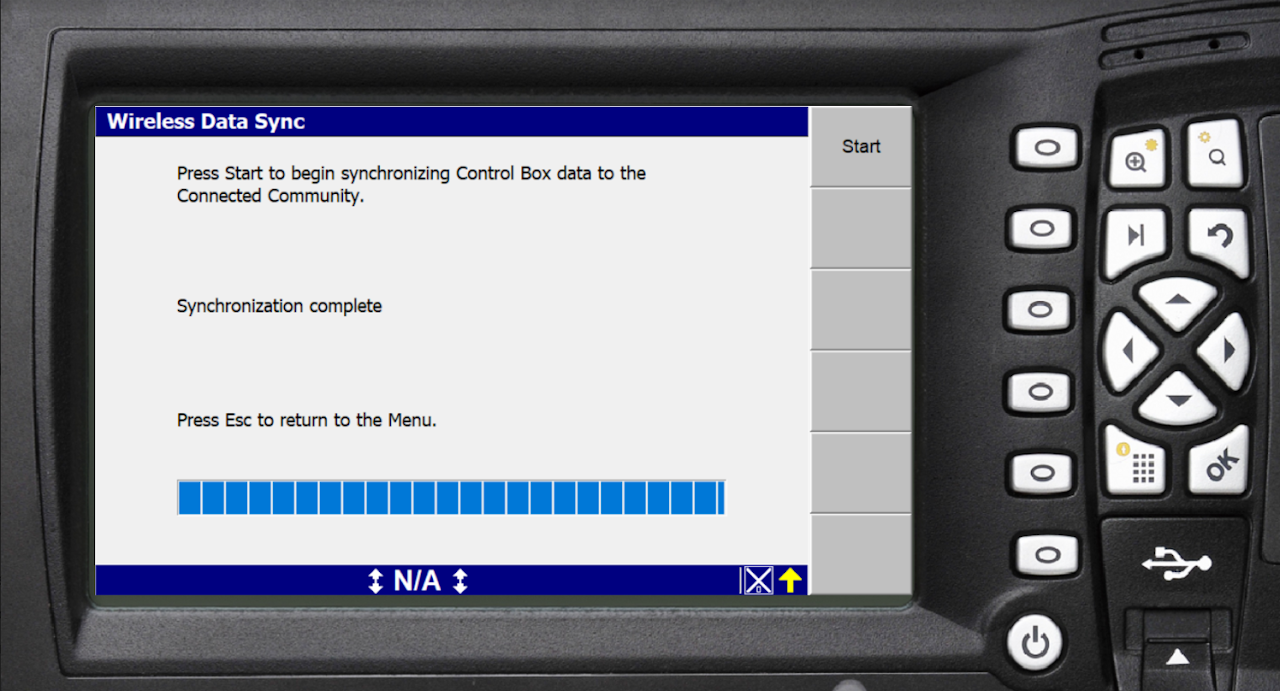

5. In Wireless Data Sync, click Start to sync the data.
