Map View

This view lets you see the areas your machines cut and filled geographically on the project site.

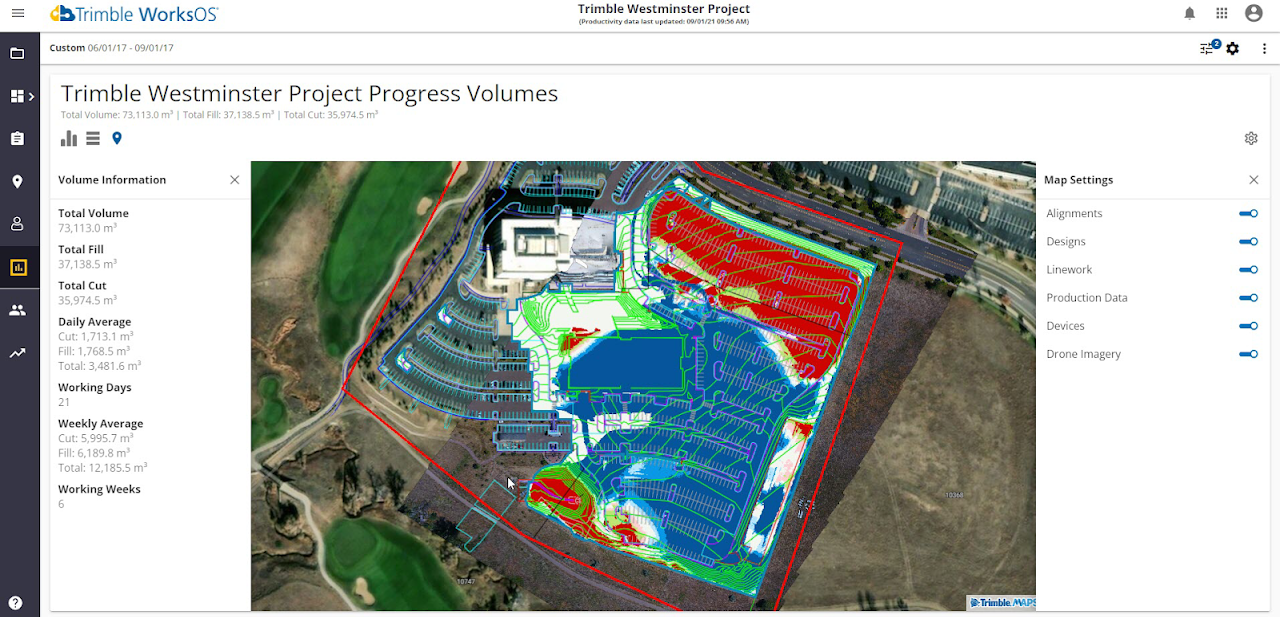

Figure: Progress volume map view

Map View Functions

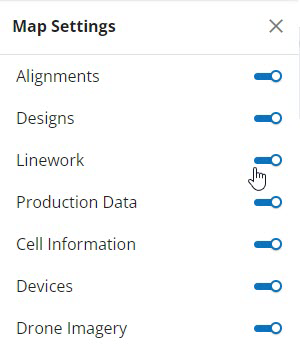

To toggle certain types of data on/off in the Map Settings pane, click the Settings icon.

Click the Volume Information arrow on the left side to see totals, including daily and weekly averages.

NOTE: Total Volume, Daily Average, and Weekly Average include both cut or fill, as applicable.

NOTE: Any non-working (0 volume) days/weeks are excluded from the Daily/Weekly Average.

TIP: Filter by new date ranges to see working areas and averages for specific time periods. This can help you, for instance, identify seasonal productivity patterns.

NOTE: If you cut and fill the same volume during the same day, the change is net 0.0. If you cut one day and fill the next day, there is a day-over-day change. Before WorksOS, this was done based on load counts. In this case, progress is measured by looking at the day-over-day change. There is usually an objective goal for how much to move (cut or fill) each day.
