Setting up the ethernet using the front panel

1. From the Home screen, press . The System Setup screen appears.

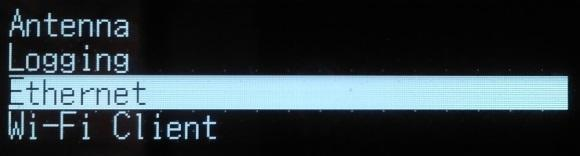

2. Press the down arrow key until Ethernet is highlighted:



3. Press .

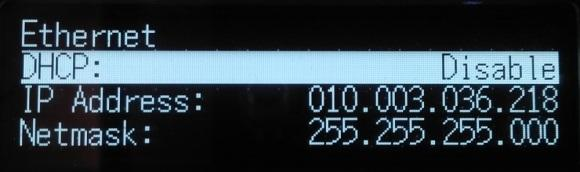

4. At DHCP, press . The DHCP setting is selected. If required, disable/enable DHCP:



5. If DHCP is disabled, using the arrow keys move to the IP Address field. Press . Enter your IP address (for example, 10.3.36.218).

6. Using the arrow keys, move down to the Netmask field. Press . Enter the required netmask.

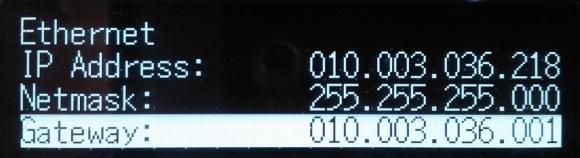

7. Using the arrow keys, move down to the Gateway field. Press :



8. Enter the required gateway address. When finished, press once, then press Esc to return to the System Setup screen.

9. Restart the receiver for the changes to take effect.

10. Open a web browser on a computer connected to the LAN. In the address bar, enter your IP address (for example, 10.3.36.218). The web interface appears.
