Trimble Alloy Help

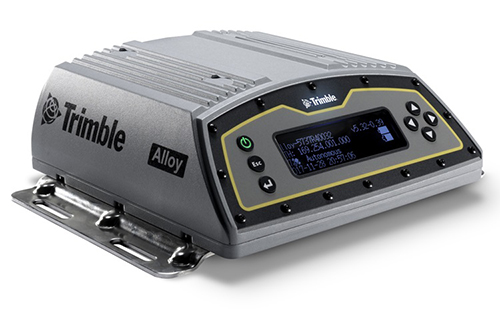

The Alloy receiver incorporates a GNSS receiver and up to two internal batteries with GNSS and Wi-Fi antenna connections. A 4-line OLED display enables monitoring of satellite tracking, data logging status, Wi-Fi, and power.

The Alloy GNSS reference receiver can be used for the following infrastructure and site development applications:

• CORS base for the Trimble Pivot™ software or other software applications

• Radio or cellular RTK or DGNSS base

• Simultaneous TCP/IP, UDP/IP, or serial output of corrections

• Campaign rover receiver

In addition to its reference station functionality, the receiver can be used as a RTK rover or as a static rover typically used in campaign survey projects. The receiver can record GNSS data to the receiver’s internal memory and download to a computer using the serial (cable or Bluetooth), Ethernet or Wi-Fi connections.

The receiver can be configured in the following ways:

• The front panel display in normal or reverse mode.

• Connection via the web interface over Ethernet or Wi-Fi.

• Connection via the web interface over Wi-Fi to a mobile phone.

• Use an application file. To edit an application file, use the web interface.
