Accessories

The following accessories are available for purchase. Please contact your Trimble dealer.

AC power kits

  • International (P/N GNSS-AC-INT)

  • China (P/N GNSS-AC-CHN)

  • Japan (P/N GNSS-AC-JPN)

  • USB-C wall charger with cable (P/N GNSS-AC-USB)

Power accessories

Some of these accessories are already available in one of the power kits listed above.

A USB-PD power pack can be purchased locally. For recommendations, see External power.

  • Power supply, AC, USB-C PD 45 W 58 × 46 × 28 mm, US, EU, UK, AU plug adapters, P/N 121928-01-HH

  • USB-C-to-USB-C charge and sync cable, P/N 121920-01-HH

  • Power supply 110 to 240 V 100 W power supply for smart charger, P/N 107000-HH

  • Power cord kit, USA EU UK AUS with C7 connector, P/N 78651-HH

Cables

Recommended cable combinations for LEMO and DB26 connectors on the receiver using a DC power source

LEMO: for external lead acid battery:

  • Cable – Power, 3 m (10 ft), LEMO 0S7P(M) to battery clips (P/N 46125-20)

LEMO: combination 3.3 m, external lead acid battery, COM1:

  • Cable – Data/Power, 1.5 m, DB9(F) to LEMO 0S7P(M) to LEMO SAE (P/N 59044-10)

  • Cable – Power, 1.8 m, SAE to battery clips (P/N 83223-02-HH)

DB26: combination 2.3 m, external lead acid battery, COM2/3/4, ETH, 1PPS:

  • Cable – Data/Power, 0.5 m, DB26(F) to DB9(F) / DB9(M) /RJ45(F) / BNC / SAE (P/N 78235-10)

  • Cable – Power, 1.8 m, SAE to battery clips (P/N 83223-02-HH)

Adapter for SAE to DC socket:

  • Cable – Adapter 0.15 m SAE to DC socket (2.1 mm) (P/N 88769-00)

Adapter for DB26 to DB9 ethernet and power:

  • Adapter DB26 to DB9 ethernet and power (P/N 57168-HH)

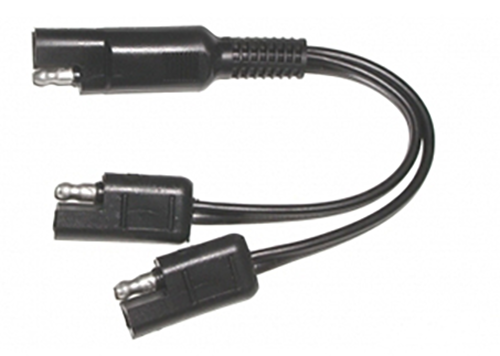

Cable splitter SAE to SAE/SAE socket:

  • Cable – Splitter 0.25 m SAE to SAE/SAE (P/N 89073-00)

Dual-to-SAE power cable

  • Cable – 1.5 m Dual 0S/7P/M to SAE power (P/N 67384-10)

2.7 m DC extension cable for SAE:

  • Cable – SAE-to-SAE power cable, 2.7 m (9 ft) (P/N 51862-00-HH)

USB-C: cable for external 15 V USB-PD powerpack or wall charger:

  • Cable – 2 m, USB-C to USB-C power/data, MPS566 (P/N 121920-01-HH)

MPS566 receiver to an external UHF radio

LEMO: For external TDL450H radio on COM1 – Cable ships with TDL 450H kits:

  • TDL 450H radio, LEMO 0S7P(M) to LEMO 1S5P(M) and SAE power (P/N 66656-10)

DB26: For external TDL510 radio on COM2 – P/N 78235-10) or P/N 57168-HH connects to:

  • TDL 510 radio, P/N 128287: Cable - Office/third-party cable TDL510 radio. SAE to DE-9 to DA-15

Antenna cables

  • GPS 1.6 m, TNC/TNC right angle, P/N 58957-02

  • GPS 5 m, TNC/TNC right angle, P/N 58957-05-HH

  • GPS 10 m, TNC/TNC right angle, P/N 58957-10

  • GPS 15 m, LMR-200 TNC/TNC right, P/N 58957-15

  • GPS 30 m, TNC/TNC right angle, P/N 58957-30

  • GNSS 5 m, TNC-to-TNC LMR400-UF, P/N 92296-05

  • GNSS 10 m, TNC-to-TNC LMR400-UF, P/N 92296-10

  • GNSS 15 m, TNC-to-TNC LMR400-UF, P/N 92296-15

  • GNSS 20 m, TNC-to-TNC LMR400-UF, P/N 92296-20

  • GNSS 30 m, TNC-to-TNC LMR400-UF, P/N 92296-30

Mounting bracket

For surface or bulkhead mounting:

  • Kit – Mounting bracket with screws, MPS566, P/N 128018-00

  • Tripod clip with mounting screws, MPS566, P/N 51702-00

  • Non-slip inserts for bench mounting × 8, P/N 131978

Transport case

  • Transport case, MPS566, P/N 101750-00
