Step 7. Connect to the receiver web interface

1. Press .

2. Use option a or b to connect your device to the MPS566 Wi-Fi access point:

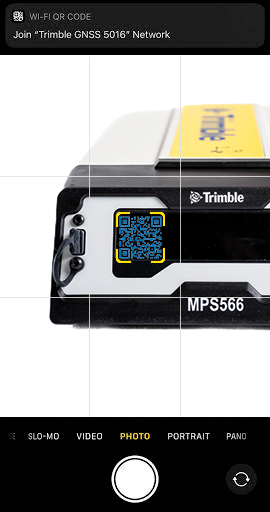

   1. . Scan the QR code:

      From the Home screen, press .

      iPhone:



   2. The SSID (network name) and password are displayed on your smartphone.

   3. Find the receiver access point SSID under the available Wi-Fi networks on your smartphone or computer.

3. The default SSID is Trimble GNSS xxxx, where xxxx represents the last four digits of the receiver serial number.

   Android smartphone:



4. Tap Connect to connect to the receiver access point.

   The default network password is abcdeabcde.

5. On your smartphone or computer:

   1. Open a web browser and enter the IP address: http://192.168.142.1

6. Log into the web interface. The default login details are:

   User Name: admin
   Password: password
