Edit a Project

First, open the Projects page by tapping All Projects from the Menu panel.

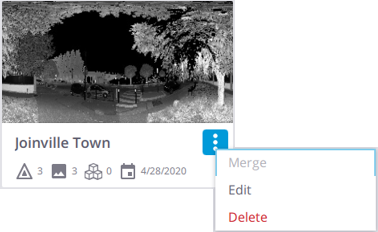

Tap More and Edit from a project thumbnail to change the attached picture, to modify the added comment, or to change the project name.

The project will be renamed:

  • On the application (database) and on the memory card under the ScanData folder (X7/X9) or on the scanner internal memory (X12), if you are connected to the scanner.

  • Only on the application (database) if you are not connected to the scanner. The project will be renamed at the reconnection.

A project will not be renamed in Perspective when you rename the project from the on-board application of the X12.

To delete a project, tap More and Delete from a project thumbnail.

To delete several projects, tap Select and choose the projects to delete or tap to select all. Tap Delete. Perspective deletes:

  • The selected project(s), and any associated project files from the database:

    & - TZF, and/or TCF, and/or TPF.

    - TZF, and/or TOI, and/or TPF.

  • And all related project files:

    & - TZF, and/or TCF from the ScanData folder in the memory card.

    - TOS, and/or TOI from the scanner's internal memory.

    Only if the Delete from Scanner option has been chosen, and the scanner is connected to the controller.

To delete a station from a project, see Manage Stations.

You can sort the projects by name (Alphabetical), by the last opened ones (Most Recent), by number of captured data (Number of Stations and Number of Images), by creation date (Date Created), in Ascending Order (or Descending Order).
