Illustrate With a Picture

Tap to take a picture with your controller to illustrate a project (see Create a New Project) or an annotation or a precision point (see Points Tool). The preview screen displays. A framing grid is a set of lines, it helps to position and frame a picture.

• Tap Guides Off to activate the framing grid.
• Tap Guide On to deactivate the framing grid.

Tap the Photo button to take a picture. Optionally, tap to rotate the picture 90° counterclockwise.

If you are satisfied with the result tap Save, or tap Discard to cancel and come back to the shooting position.

Once done, tap :

• PROJECT: The taken picture displays as a thumbnail in the Menu bar and in the Projects page. If no picture has been attached, the first captured scan is used instead.

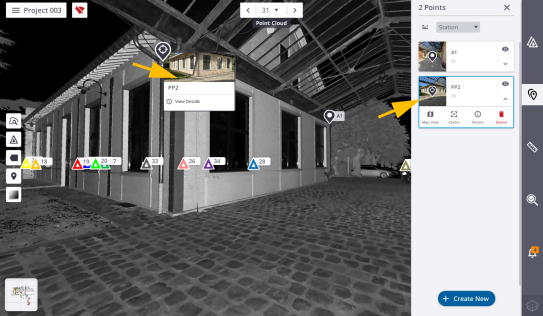

• ANNOTATIONS & PRECISION POINTS: The taken picture is attached to an annotation or a precision point in two places.
