Accessories

The following accessories are available for purchase. Please contact your Trimble dealer.

GNSS AC power kits

These AC power kits are suitable for office (internal) use only. The GNSS-AC-USB kit is recommended as a standard accessory.

  • International (P/N GNSS-AC-INT)

  • China (P/N GNSS-AC-CHN)

  • Japan (P/N GNSS-AC-JPN)

  • USB-C wall charger with cable (P/N GNSS-AC-USB)

Power accessories

Most of these accessories are already available in one of the power kits. A USB-PD power pack can be purchased locally.

  • Adapter – USB power AC, 5/9 V, 3.0 A, 100 V AC to 240 V AC, 30 W, Global (P/N 121928-01)

  • Cable, USB-C to USB-C charge and sync cable (P/N 121920-01)

  • Power supply – 65 W, 19 V, 3.43 A, 100 V AC to 240 V AC (P/N 107000)

  • Power cord kit – USA, EU, UK, AUS with C7 connector (P/N 78651)

GNSS antennas

Select the appropriate GNSS antenna. The Zephyr 3 Base is recommended for an RTK base application. Also see GNSS antenna chart.

  • Zephyr 3 Base (boxed) (P/N 115000-50)

  • Zephyr 3 Rover (boxed) (P/N 105000-50)

  • Zephyr 3 Rugged with 5/8" mounting bracket (P/N 125000-30)

  • Zephyr 3 Rugged with mast mounting bracket (P/N 125000-10)

  • GA830, GNSS/MSS(Global)/Beacon, Marine (P/N 44830-00)

Cables

Recommended cable combinations for LEMO and DB26 connectors on the receiver using a DC power source

LEMO: for external lead acid battery:

  • Cable – Power, 3 m (10 ft), LEMO 0S7P(M) to battery clips (P/N 46125-20)

LEMO: combination 3.3 m, external lead acid battery, COM1:

  • Cable – Data/Power, 1.5 m, DB9(F) to LEMO 0S7P(M) to LEMO SAE (P/N 59044-10)

  • Cable – Power, 1.8 m, SAE to battery clips (P/N 83223-02)

DB26: combination 2.3 m, external lead acid battery, COM1/2/3/4, ETH, 1PPS:

  • Cable – Data/Power, 0.5 m, DB26(F) to DB9(F)/DB9(M)/RJ45(F)/BNC/SAE (P/N 78235-10)

  • Cable – Power, 1.8 m, SAE to battery clips (P/N 83223-02)

2.7 m DC extension cable for cable options DB26 combination and LEMO combination listed above:

  • Cable – SAE to SAE, power cable, 2.7 m (9 ft) (P/N 51862-00)

USB-C: cable for external 15 V USB-PD powerpack or wall charger:

  • Cable – 2 m, USB-C to USB-C power/data, R750 (P/N 121920-01)

R750 receiver to an external UHF radio

LEMO: For external TDL450 radio on COM1 – Cable ships with TDL450 kits:

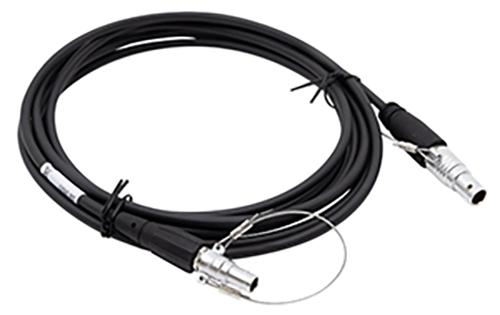

  • TDL450B radio, LEMO 0S7P(M) to LEMO 1S5P(M), (P/N 130918)

  • TDL450H radio, LEMO 0S7P(M) to LEMO 1S5P(M) and SAE power (P/N 66656-10)

LEMO: To connect COM1 with third-party radio cables:

  • Cable – Data/Power, 1.5 m, DB9(F) to LEMO 0S7P(M) to SAE (P/N 59044-10)

Other power/data cables

  • Cable – 1.5 m, dual 0S/7P/M to SAE power (P/N 67384-10)

  • Cable – Data/Power/1PPS, 1 m (3 ft), D26F to D9F, D9M, BNC, USB, RJ45M, CPM/F, Straight (P/N 77070-00)

  • Cable – Power, 0.6 m, 7P LEMO to SAE (P/N 95715)

  • Cable – Adapter, 0.15 m, SAE to DC socket (2.1 mm) (P/N 88769-00)

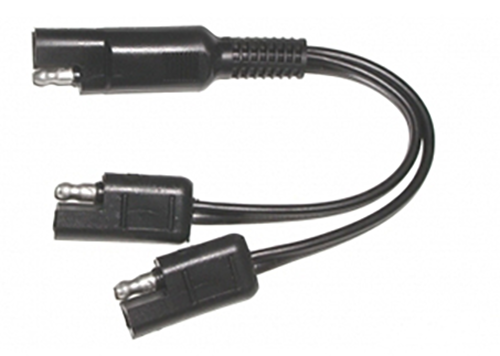

  • Cable – Splitter, 0.25 m, SAE to SAE/SAE (P/N 89073-00)

  • Adapter, DB26 to DB9, ethernet and power (P/N 57168)

Antenna cables

  • GPS 1.6 m, TNC/TNC right angle (P/N 58957-02)

  • GPS 5 m, TNC/TNC right angle (P/N 58957-05)

  • GPS 10 m, TNC/TNC right angle (P/N 58957-10)

  • GPS 15 m, LMR-200 TNC/TNC right (P/N 58957-15)

  • GPS 30 m, TNC/TNC right angle (P/N 58957-30)

UHF accessories - 450 MHz

The UHF connector (450 MHz and 900 MHz) on the receiver is reverse polarity TNC (RP-TNC), P/N 56510-6x are the recommended kits containing cable P/N 129808-05. The 6" rubber whip antenna (P/N 123588) can be used for both 450 MHz and 900 MHz models. P/N 119128 TNC adapter can be used with older UHF accessory kits (PN 56500-6x).

  • Antenna – UHF, 6" rubber whip, 900 MHz / 450 MHz, reverse polarity, R750 (P/N 123588)

  • Kit – External UHF antenna, 430 MHz to 450 MHz, R750 (P/N 56510-64)

  • Kit – External UHF antenna, 450 MHz to 470 MHz, R750 (P/N 56510-66)

  • Bracket – Remote SiteNet 900 or SiteNet 450 radio antenna (new base station) (P/N 49102)

  • Cable – NMO/RP-TNC adapter cable (5 m LMR-200) (P/N 129808-05)

  • Cable – NMO/RP-TNC adapter cable (15 m LMR-200) (P/N 129808-15)

  • Cable – NMO/RP-TNC adapter cable (30 m LMR-400) (P/N 129808-30)

  • Radio – Radio antenna, 0 db to 5 db whip, 430 MHz to 450 MHz (P/N 24253-44)

  • Radio – Radio antenna, 0 db to 5 db whip, 450 MHz to 470 MHz (P/N 24253-46)

  • Adapter – 450 MHz RF, TNC jack to RP (P/N 119128) - Can be used with older UHF accessory kits (P/N 56500-6x)

UHF accessories - 900 MHz

The UHF connector (450 and 900 MHz) on the receiver is reverse polarity TNC (RP-TNC), P/N 56510-6x is the recommended kit containing cable P/N 129808-05. The 6" rubber whip antenna (P/N 123588) can be used for both 450 MHz and 900 MHz models.

  • Antenna – UHF, 6" rubber whip, 900 MHz / 450 MHz, reverse polarity, R750 (P/N 123588)

  • Kit – External UHF antenna, 900 MHz, R750 (P/N 56510-90)

  • Antenna - Radio, 8" rubber whip, 900 MHz, reverse polarity (P/N 32319)

  • Bracket – Remote SiteNet 900 or SiteNet 450 radio antenna (new base station) (P/N 49102)

  • Cable – NMO/RP-TNC adapter cable (5 m LMR-200) (P/N 129808-05)

  • Cable – NMO/RP-TNC adapter cable (15 m LMR-200) (P/N 129808-15)

  • Cable – NMO/RP-TNC adapter cable (30 m LMR-400) (P/N 129808-30)

  • Radio – Radio antenna, 5 db whip, 896 MHz to 940 MHz (P/N 24253-92)

Mounting bracket

For surface or bulkhead mounting:

  • Kit – Mounting bracket with screws, R750/MPS566 (P/N 128018-00)

  • Tripod clip with mounting screws, R750/MPS566 (P/N 51702-00)

  • Non-slip inserts for bench mounting × 8 (P/N 131978)

Transport case

  • Transport case, R750/MPS566 (P/N 101750-00)
