Step 6. Connect the ethernet cable

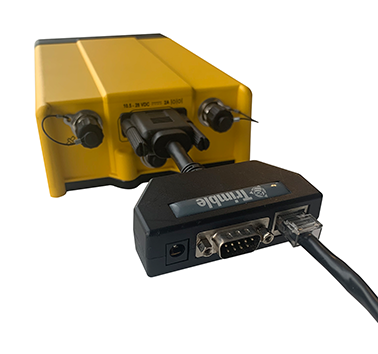

  1. Connect a Trimble DB26 adapter with an RJ45 socket (e.g. P/N 57168), to the DB26 connector on the receiver rear panel.

  2. Connect an RJ45 cable to the socket on the DB26 adapter.

  3. to find the IP address on the front screen.
