Length measurement

Any points or lines used in the calculation must be measured before entering the workflow. The Length Request workflow screen does not allow for measuring new points or lines; it only allows for using existing points or lines, or creating temporary points by tapping on the screen, to measure length.

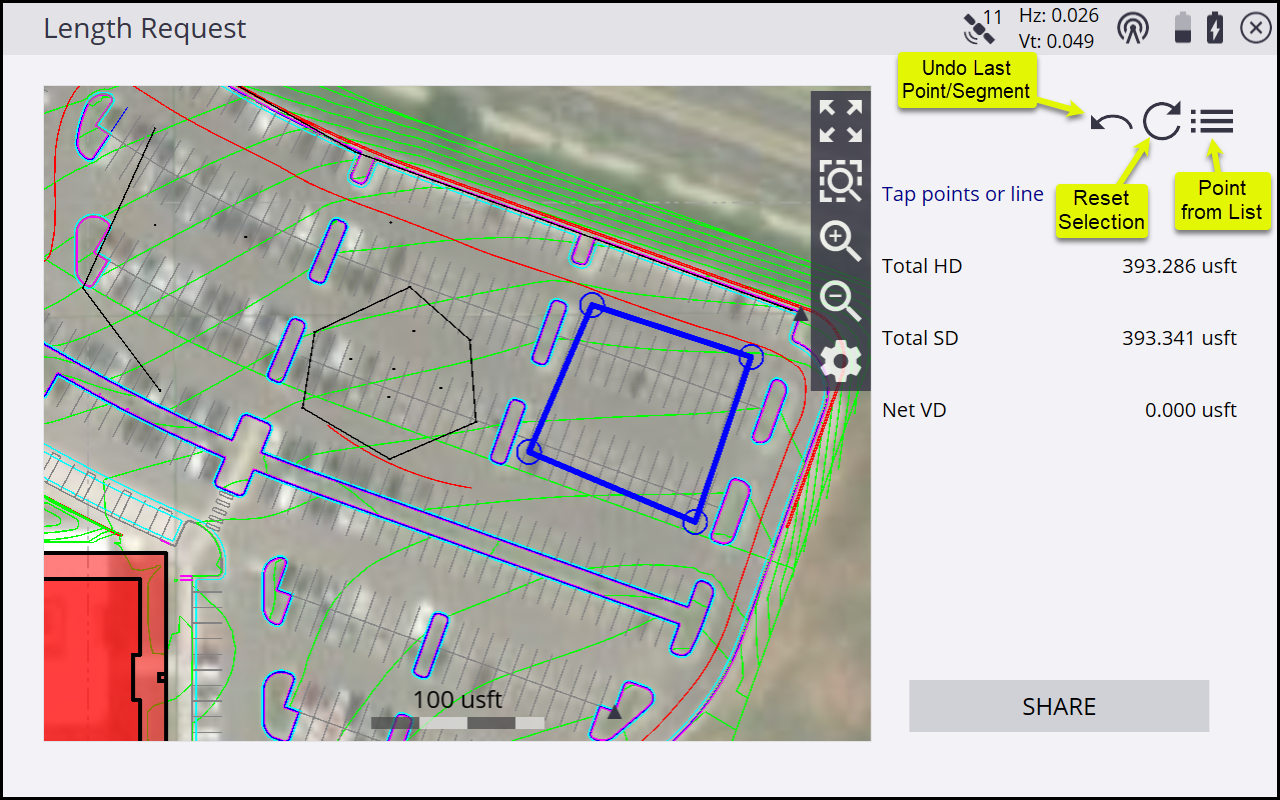

  1. Select a length measurement from the Measurement Request table to open the Length Request screen:

  2. Tap on an existing line, individual measured points, or anywhere on the screen to create/select points to be used in the calculation.

    • You can also select individual points using the Point from List menu in the top right of the screen.

    • Tap to reset all currently selected points/lines.

    • Tap to undo the last point selected, or deselect the last segment of the line if a line is selected.

  3. Tap SHARE after the line length to be sent to B2W Track is correctly configured to complete the length request. The SHARE button appears only after at least two points or a line are selected.

The length sent to B2W Track is the horizontal distance, not the slope distance of the line.
