Trimble controller
A Trimble controller, for example a TSC7 or TSC5, can be used as a controller for the instrument.
Connecting with a cable

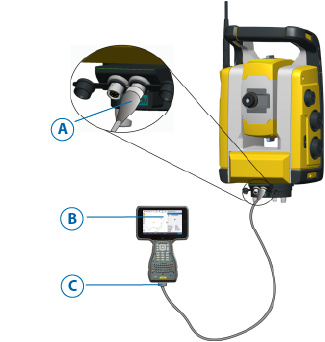

The controller is connected from the Trimble SPS Series Total Station Communication (COM) connector to the controller using cable part number 53002021.
| A | Com Collector |
| B | TSC7 |
| C | RS232 Com Collector |
Servo and Autolock Mode
A controller can be connected to the Trimble SPS Series Total Station with a cable or by use of Bluetooth wireless technology.
Connecting with a cable
The controller is connected from the Trimble SPS Series Total Station com port to the serial port connector on the controller using cable part number 53009012.
Connecting with Bluetooth wireless technology
The controller has built in Bluetooth wireless technology.
Connecting in Robotic Mode
The controller is connected directly to the Trimble SPS Series Total Station via the integrated radio.
