Radio antenna bracket for the SPS985/SPS986 smart antenna

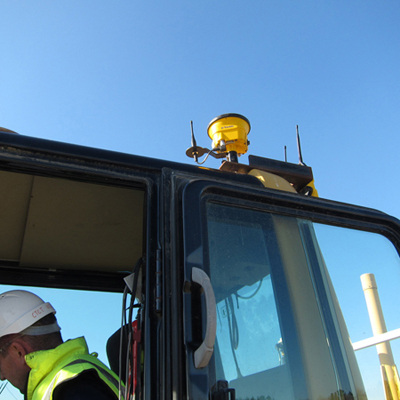

The radio antenna bracket (P/N 105600) for the SPS985/SPS986 smart antenna is designed so that the black whip antenna points upwards rather than downwards. This makes installation easier on site supervisor vehicles or small machines.

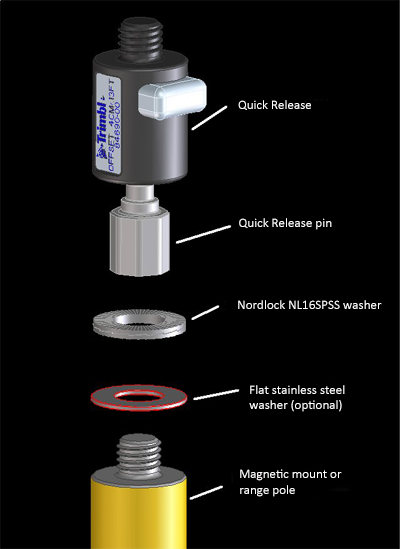

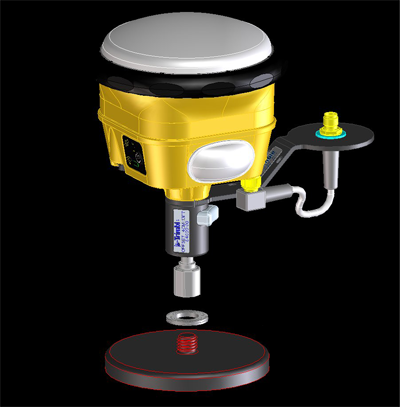

The following diagram shows how to mount the radio antenna bracket with the single magnetic mounting. The Quick Release (P/N 84690-00) is required. The stainless steel washer is optional.

Trimble recommends using Nordlock NL16SPSS washers as they stop the receiver rotating in the higher vibration installations.
