Inserting a MicroSIM card (optional)

If your TSC5 controller / Ranger 5 data collector is equipped with a 4G LTE modem, you will need a data plan and microSIM card from your local cellular service provider to use cellular data. If you are unsure, check with your mobile operator. See Working with mobile broadband for more information.

Do not replace the SIM card while outdoors. Water, dust, dirt or debris may collect inside the SIM card bay causing performance issues.

The SIM card door can be damaged if handled carelessly or if sharp tools are used to open the door. Take care not to twist or warp the door when opening or closing it.

  1. If the device is on, turn it off; press-hold the Power key, then tap Power Off.

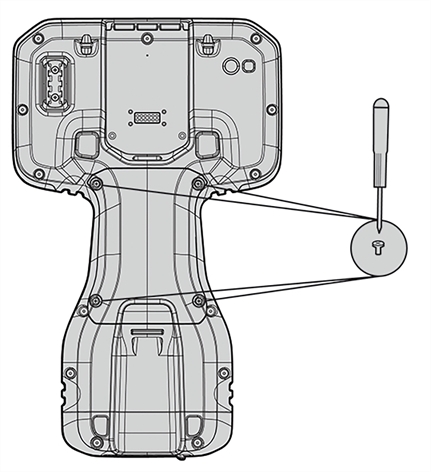

  2. Using the Philips screwdriver, loosen the 4 screws to remove the cover from the back of the device.

    If the accessory battery is installed, remove it to access the SIM card door.

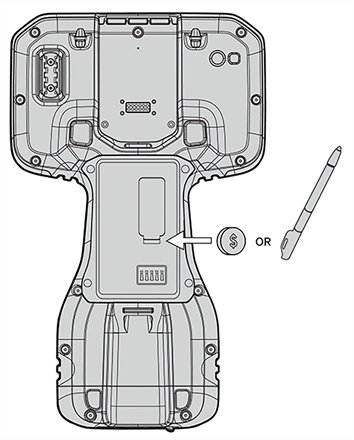

  3. Pry open the SIM card door using a coin or the tool located on the stylus tether as shown; do not remove the door completely.

  4. Slide the SIM card into the slot in the orientation shown on the SIM door.

  5. Close the SIM door, making sure it clicks shut.

  6. See the next section to Install the optional accessory battery.

  7. Replace the cover and tighten the 4 screws using the Philips screwdriver.
