Edit a Tunnel Shape

Use the Edit Tunnel Shape command to edit the geometry for an existing tunnel shape.

Prerequisites:

Licensed module. See the Subscription Plans page. For a license matrix by command, see the License page in the TBC Community. Also see View and manage licensed features.

To edit a tunnel shape:

Do either of the following:
- In the Project Explorer, right-click the tunnel shape you want to edit and select Edit Tunnel Shape.
- If no tunnel shape is selected, select Edit Tunnel Shape in Tunnels > Edit to display the Shape Editor tab. Then, in the drop-down lists, select the Tunnel, Template, and Shape you want to edit.

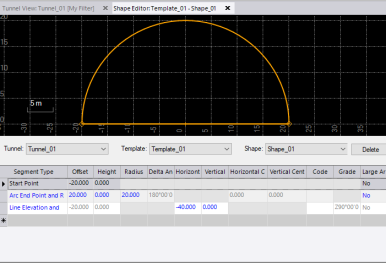

The selected tunnel shape is displayed on the Shape Editor tab.
Make edits to the tunnel shape as necessary.
See Create a Tunnel Shape for additional instructions.
